Front Bumper Cover: Disassembly

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. Remove the front fog lamps. Refer to: Front Fog Lamp .
  3. Remove the front parking aid sensors, active park assist sensors and associated wiring. Refer to: Parking Aid - Overview .

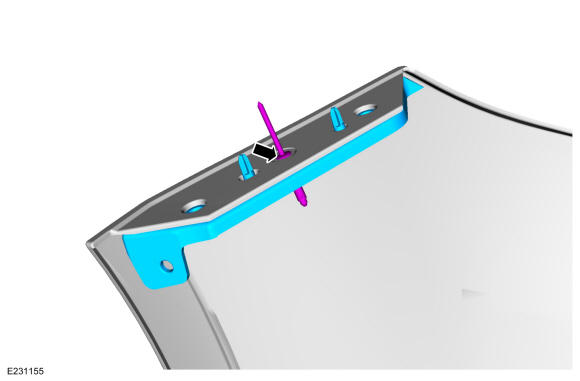

  4. On each side. Remove the rivet and the front bumper cover-to-fender bracket.
    GFD199650Courtesy of FORD MOTOR COMPANY

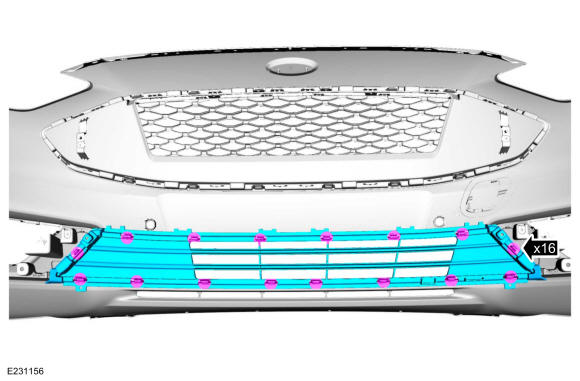

  5. Release the tabs and remove the lower radiator grille.
    GFD199651Courtesy of FORD MOTOR COMPANY

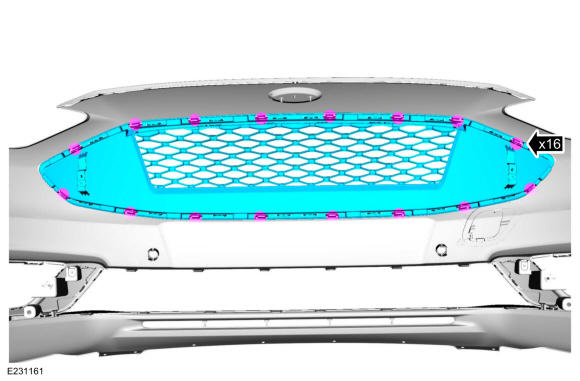

  6. Release the tabs and remove the upper radiator grille.
    GFD199652Courtesy of FORD MOTOR COMPANY

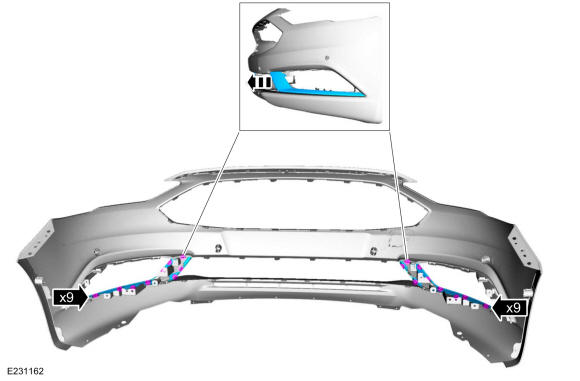

  7. Release the tabs and remove the fog lamp bezels.
    GFD199653Courtesy of FORD MOTOR COMPANY
  8. Remove the nuts and the emblem.
GFD199654Courtesy of FORD MOTOR COMPANY
