Hood Alignment

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

All alignments

  1. Inspect the hood-to-body dimensions. Refer to: Body and Frame .

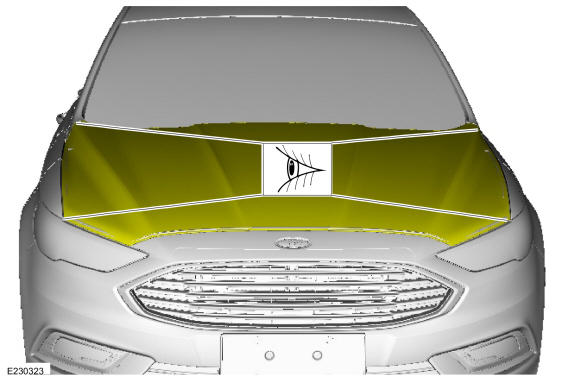

    GFD199090Courtesy of FORD MOTOR COMPANY
  2. Open the hood.

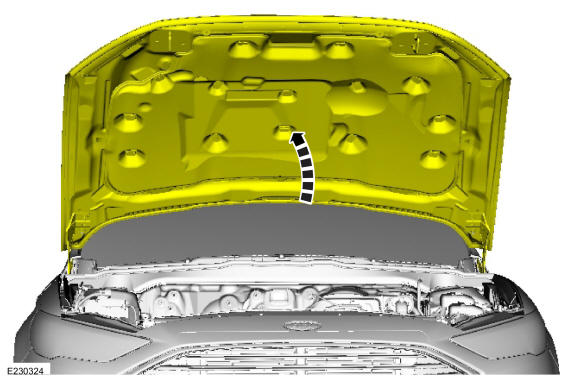

    GFD199079Courtesy of FORD MOTOR COMPANY
  3. Remove the hood latch. Refer to: Hood Latch .

    Hood fore and aft, left and right alignments

  4. Loosen the nuts enough to permit movement of the hood.

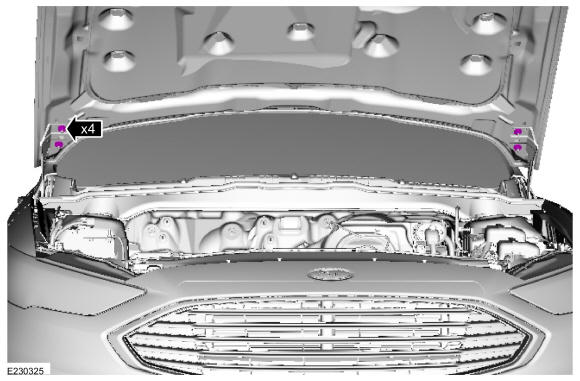

    GFD199091Courtesy of FORD MOTOR COMPANY

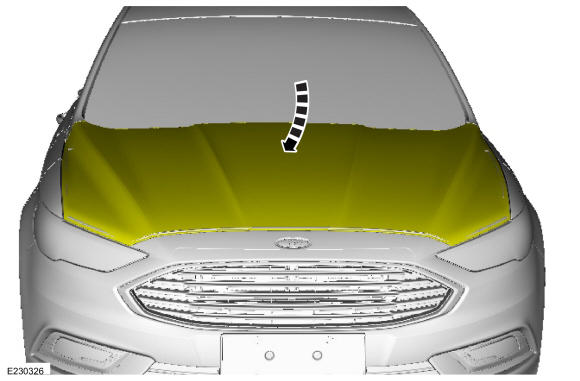

  5. Carefully close the hood.
    GFD199092Courtesy of FORD MOTOR COMPANY

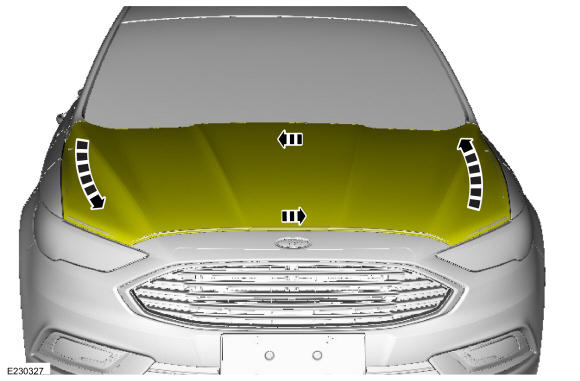

  6. Adjust the hood to specification. Refer to: Body and Frame .
    GFD199093Courtesy of FORD MOTOR COMPANY
  7. Carefully open the hood.
    GFD199079Courtesy of FORD MOTOR COMPANY
  8. Tighten the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD199091Courtesy of FORD MOTOR COMPANY

    Hood front up and down alignments

  9. Adjust the bump stop rubber.

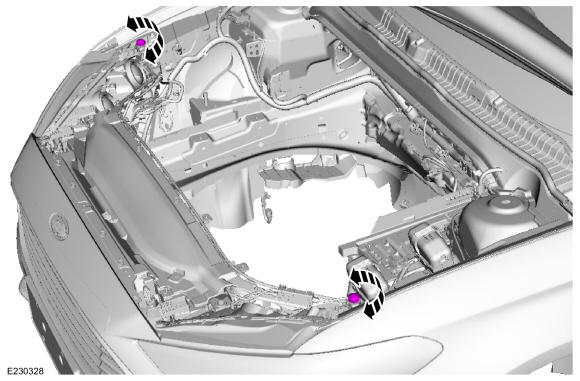

    GFD199094Courtesy of FORD MOTOR COMPANY
  10. Carefully close the hood.
    GFD199092Courtesy of FORD MOTOR COMPANY
  11. Adjust the hood to specification. Refer to: Body and Frame .
    GFD199095Courtesy of FORD MOTOR COMPANY

    All alignments

  12. Install the hood latch. Refer to: Hood Latch .
  13. Inspect the body-to-hood dimensions. Refer to: Body and Frame .
GFD199090Courtesy of FORD MOTOR COMPANY
