Perimeter Anti-Theft Alarm - Overview: Overview

The perimeter alarm system deters unauthorized entry into the vehicle by sounding the horn and flashing all the turn signals and interior courtesy lamps. When an unauthorized entry occurs, the horn and lamps activate for 30 seconds. After 30 seconds, the horn stops sounding, but the lamps continue to flash for up to 5 minutes.

The panic alarm operates similar to the perimeter alarm, but only activates using the panic button on the RKE transmitter.

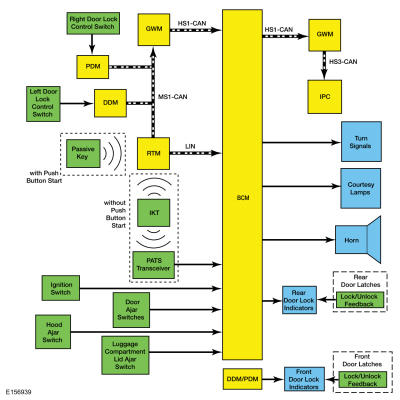

GFD199012Courtesy of FORD MOTOR COMPANY
