Keyless Entry Rear Antenna: Removal

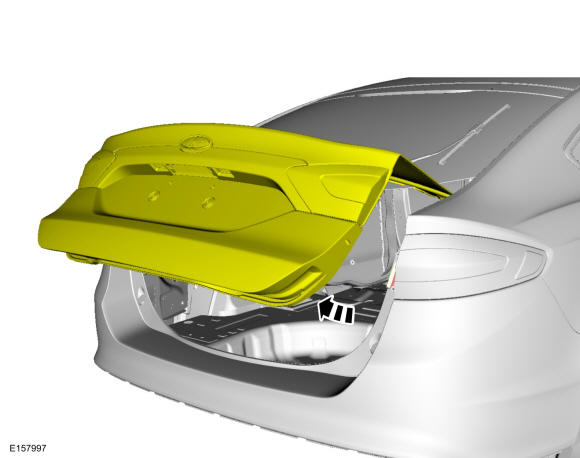

  1. Open the luggage compartment lid.
    GFD199564Courtesy of FORD MOTOR COMPANY
  2. Release the clips and remove the liftgate scuff plate trim panel.
    GFD199565Courtesy of FORD MOTOR COMPANY

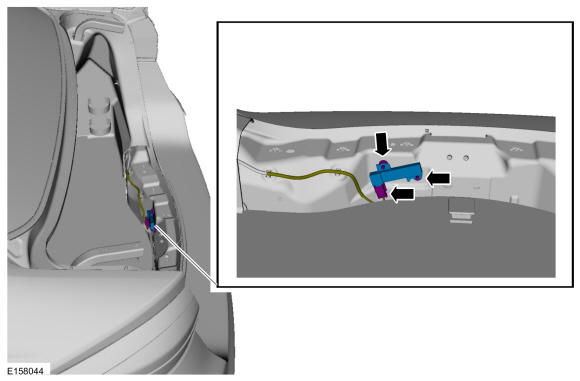

  3. Disconnect the keyless entry rear antenna electrical connector and remove the keyless entry rear antenna.
GFD199566Courtesy of FORD MOTOR COMPANY
