Hood Latch Release Handle: Removal

  1. Remove the hood latch release handle access cover.
    GFD199538Courtesy of FORD MOTOR COMPANY

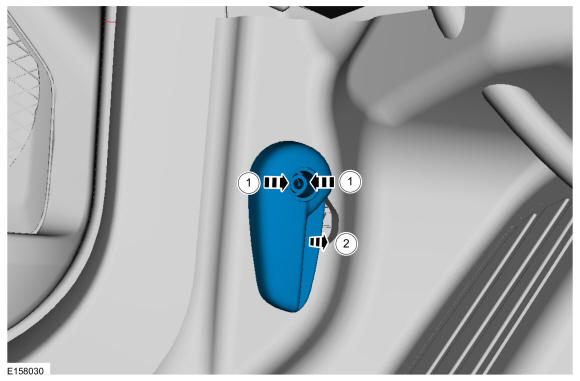

  2. NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

    1. Release the hood latch release handle retaining clips.
    2. Remove the hood latch release handle.

GFD199552Courtesy of FORD MOTOR COMPANY
