Hood Latch Release Cable: Removal

Left front cable

1. Remove the front bumper cover. REFER to: Front Bumper Cover .
2. Remove the hood latch release cable junction block cover.
   1. Press the retaining tabs inward to release the hood latch release cable junction block cover.
   2. Remove the hood latch release cable junction block cover.

   Courtesy of FORD MOTOR COMPANY

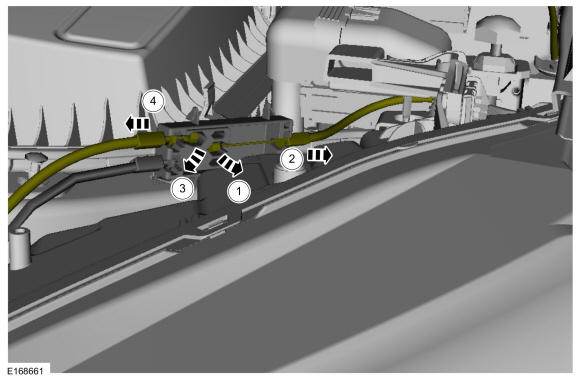

3. Release and position aside the rear and right hood latch release cables.
   1. Release rear hood latch release cable.
   2. Position aside the rear hood latch release cable.
   3. Release the right hood latch release cables.
   4. Position aside the right hood latch release cable.

   Courtesy of FORD MOTOR COMPANY

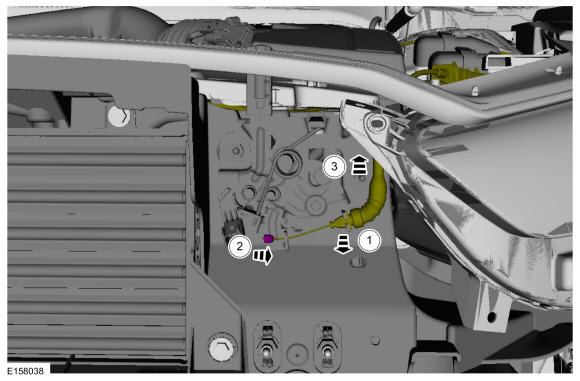

4. Detach the left front hood latch release cable from the left front hood latch.
   1. Detach the left front hood latch release cable from the left front hood latch.
   2. Remove the left front hood latch release cable from the left front hood latch.
   3. Route the left front hood latch release cable through the core support.

   Courtesy of FORD MOTOR COMPANY

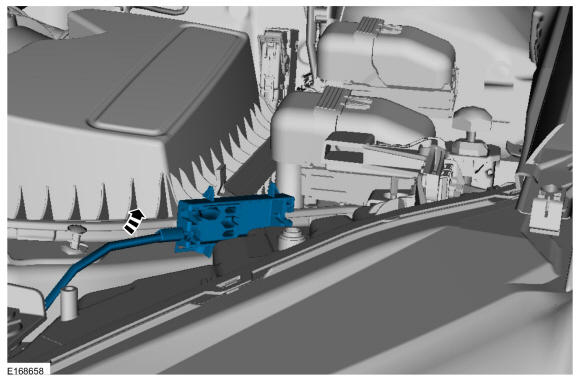

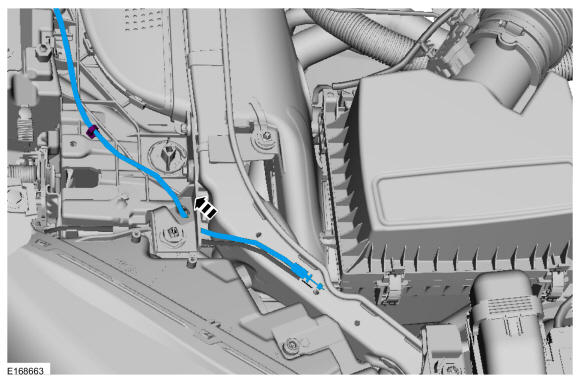

5. Remove the left front hood latch release cable.

   Courtesy of FORD MOTOR COMPANY

   Right front cable

6. Remove the front bumper cover. REFER to: Front Bumper Cover .

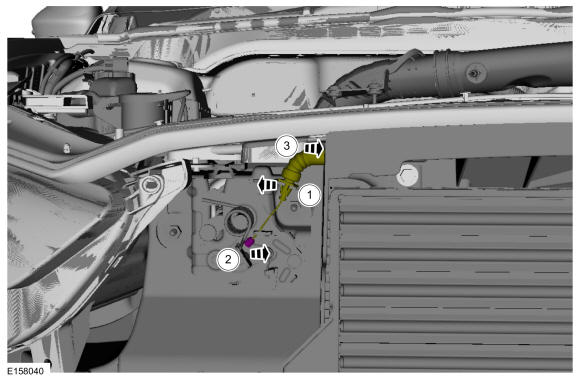

7. Remove the right front hood latch release cable from the right front hood latch.
   1. Detach the right front hood latch release cable from the right front hood latch.
   2. Remove the right front hood latch release cable from the right front hood latch.
   3. Route the right front hood latch release cable through the core support.

   Courtesy of FORD MOTOR COMPANY

8. Route the right hood latch release cable from the core support.

   Courtesy of FORD MOTOR COMPANY

9. Remove the hood latch release cable junction block cover.
   1. Press the retaining tabs inward to release the hood latch release cable junction block cover.
   2. Remove the hood latch release cable junction block cover.

   Courtesy of FORD MOTOR COMPANY

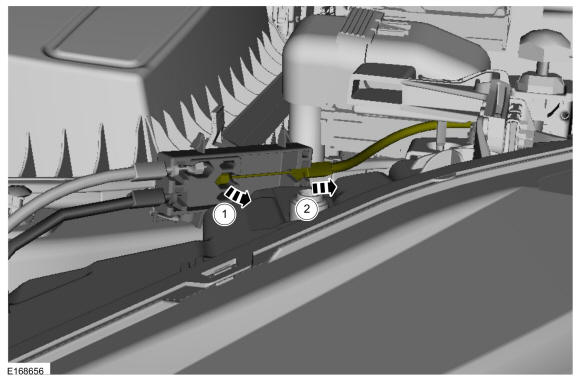

10. Detach and position aside the right hood latch release cable.
    1. Detach the right hood latch release cable.
    2. Position aside the right hood latch release cable.

    Courtesy of FORD MOTOR COMPANY

11. Release the routing clip and remove the right hood latch release cable.

    Courtesy of FORD MOTOR COMPANY

    Rear Cable

12. Remove the hood latch release handle access cover.

    Courtesy of FORD MOTOR COMPANY

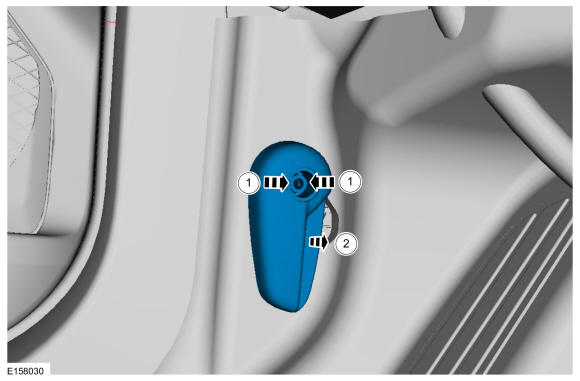

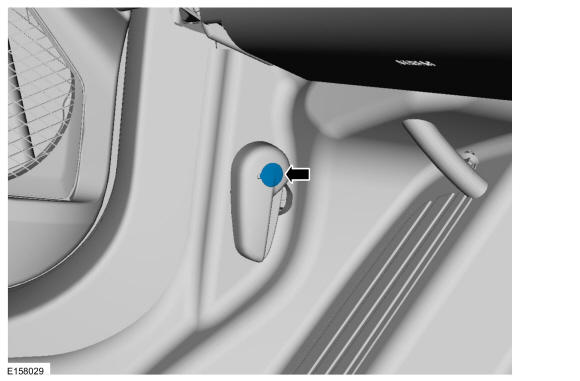

13. NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

    Remove the hood latch release handle.

    1. Release the hood latch release handle retaining clips.
    2. Remove the hood latch release handle.

    Courtesy of FORD MOTOR COMPANY

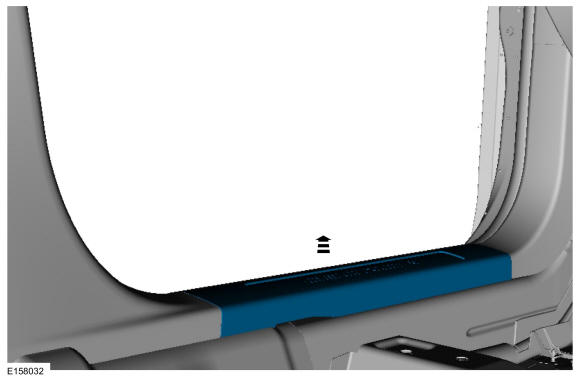

14. Remove the driver door scuff plate.

    Courtesy of FORD MOTOR COMPANY

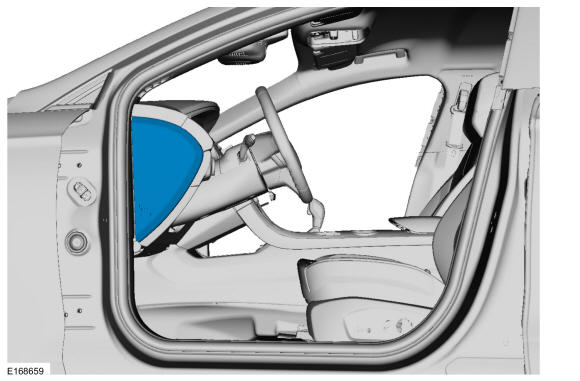

15. Remove the left side instrument panel cover.

    Courtesy of FORD MOTOR COMPANY

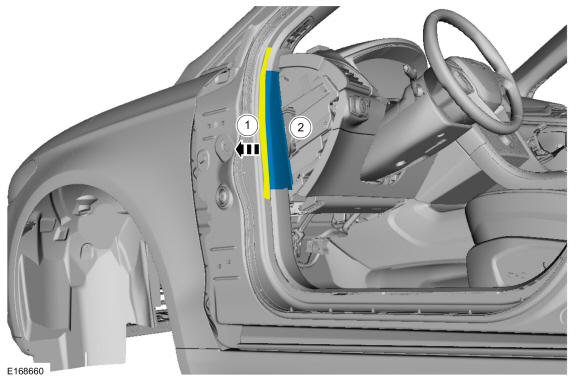

16. Position aside the weatherstrip and remove the cowl trim panel.
    1. Position aside the weatherstrip.
    2. Remove the cowl trim panel.

    Courtesy of FORD MOTOR COMPANY

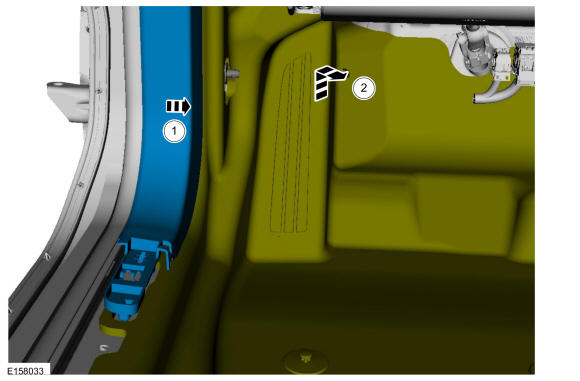

17. Remove the left side kick panel and position aside the carpet.
    1. Remove the left side kick panel.
    2. Position aside the carpet.

    Courtesy of FORD MOTOR COMPANY

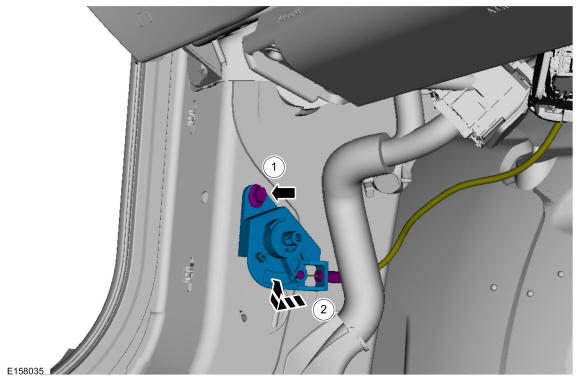

18. Remove the bolts, hood latch release and disconnect the rear hood latch release cable.
    1. Remove the bolts and hood latch release.
    2. Disconnect the rear hood latch release cable.

    Courtesy of FORD MOTOR COMPANY

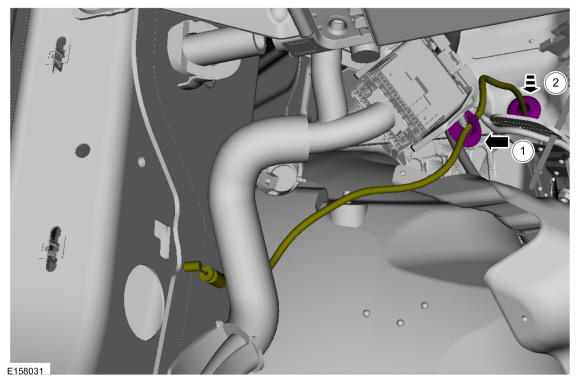

19. Release the routing clips and route the hood latch release cable through the cowl.
    1. Release the routing clips.
    2. Route the rear hood latch release cable through the cowl.

    Courtesy of FORD MOTOR COMPANY

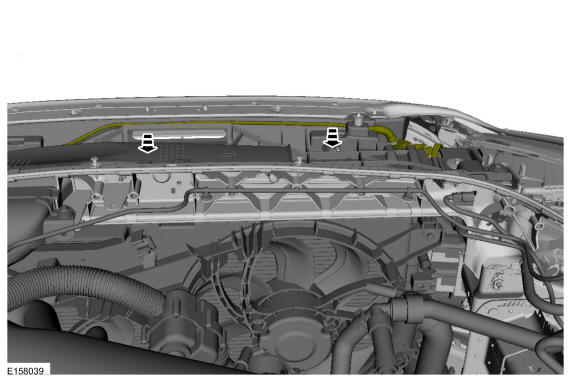

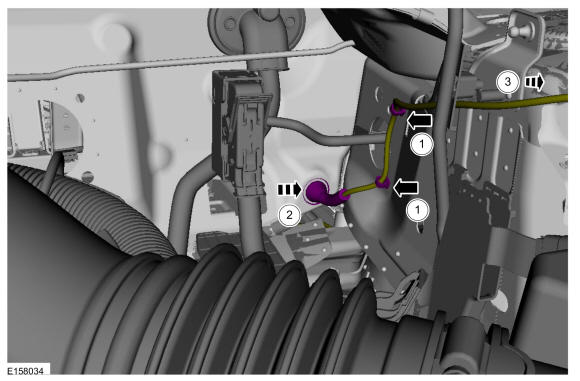

20. Release the routing clips and route the rear hood latch release cable through the engine compartment.
    1. Release the routing clips.
    2. Route the rear hood latch release cable through the cowl.
    3. Route the rear hood latch release cable through the engine compartment.

    Courtesy of FORD MOTOR COMPANY

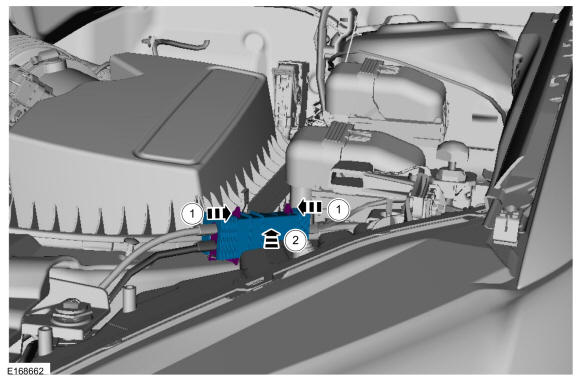

21. Remove the hood latch release cable junction block cover.
    1. Press the retaining tabs inward to release the hood latch release cable junction block cover.
    2. Remove the hood latch release cable junction block cover.

    Courtesy of FORD MOTOR COMPANY

22. 1. Release and position aside the rear hood latch release cable.
    2. Release and position aside the rear hood latch release cable.

    Courtesy of FORD MOTOR COMPANY

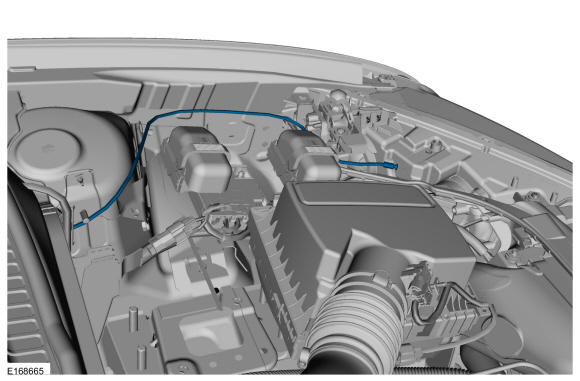

23. Remove the rear hood latch release cable.

Courtesy of FORD MOTOR COMPANY
