Front Seat: Removal

NOTE: Driver seat shown, passenger seat similar.
  1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    Turn the ignition OFF and wait at least one minute.

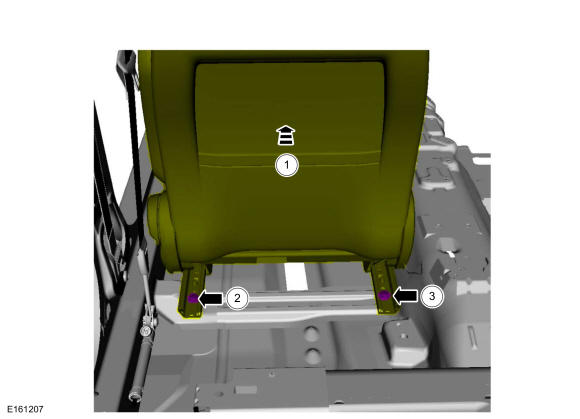

    1. Position the seat frontward to access the seat rear bolts.
    2. Remove the seat bolt.
    3. Remove the seat bolt.
    GFD199282Courtesy of FORD MOTOR COMPANY

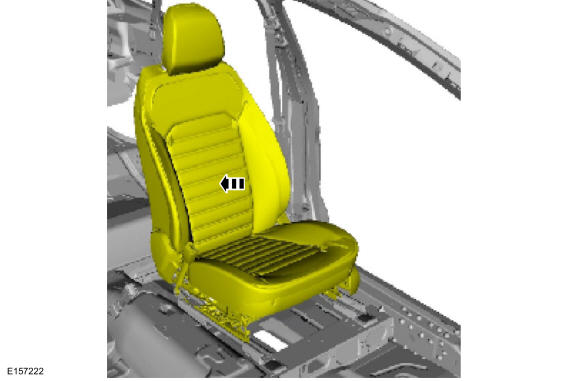

  3. Move the front seat to the full rearward position.
    GFD199283Courtesy of FORD MOTOR COMPANY
  4. If a seat side airbag SRS fault is present, depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
  5. Remove the front seat bolt caps.
    GFD199284Courtesy of FORD MOTOR COMPANY

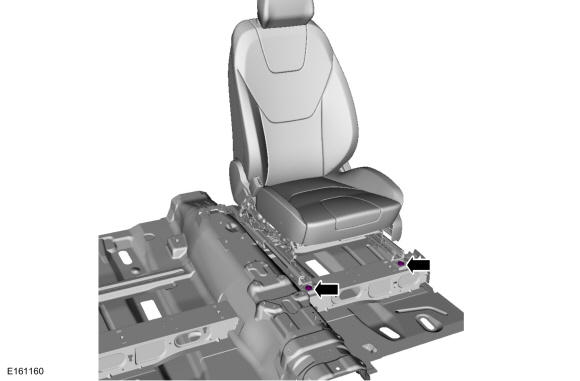

  6. Remove the front seat bolts.
    GFD199285Courtesy of FORD MOTOR COMPANY
  7. Remove the front seat.

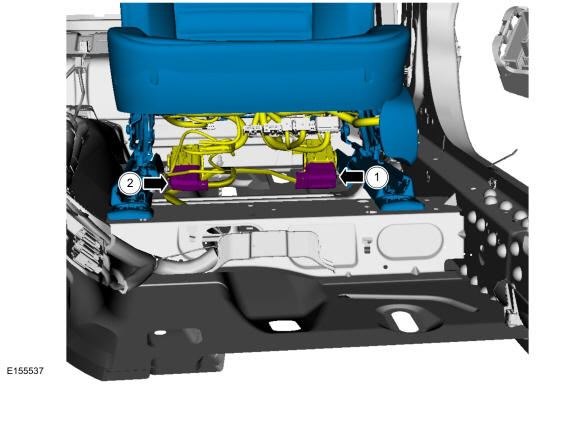

    1. Disconnect the wiring harness electrical connector.
    2. If equipped. Disconnect the heated seat electrical connector.

GFD199286Courtesy of FORD MOTOR COMPANY
