Front Seat: Installation

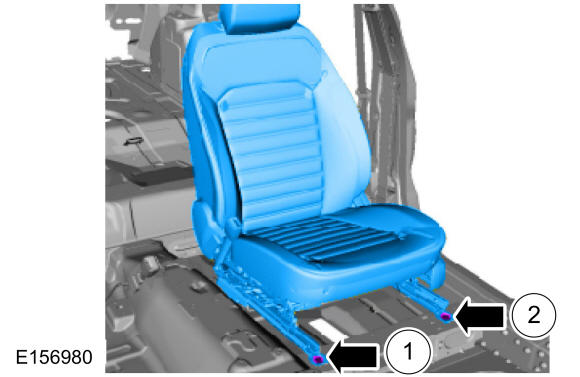

  1. Install the front seat and tighten the bolts in the sequence shown.

    Torque: 35 lb.ft (47.5 Nm)

    GFD199287Courtesy of FORD MOTOR COMPANY
  2. Install the front seat bolt caps.
    GFD199284Courtesy of FORD MOTOR COMPANY
    1. Connect the wiring harness electrical connector.
    2. If equipped. Connect the heated seat wiring harness electrical connector.
    GFD199288Courtesy of FORD MOTOR COMPANY
  4. If the SRS has been depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .

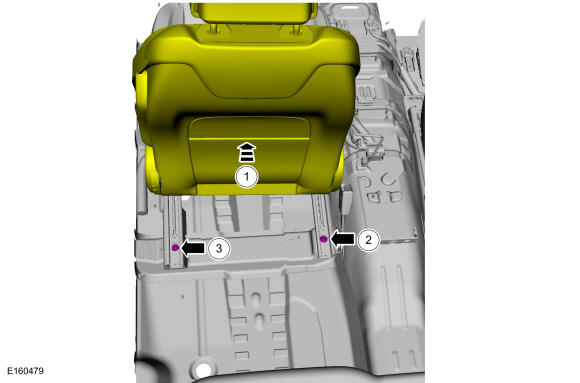

  5. Position the seat forward to access the seat rear bolts and tighten the bolts in the sequence shown.

    Torque: 35 lb.ft (47.5 Nm)

GFD199289Courtesy of FORD MOTOR COMPANY
