Front Seat Track: Removal

NOTE: Note the wire harness routing for installation purposes.
  1. Remove the front seat backrest. Refer to: Front Seat Backrest .
  2. Remove the front seat cushion cover. Refer to: Front Seat Cushion Cover .
  3. NOTE: Passenger seat only.

    Detach the front pin-type retainers, lift the bladder and feed the OCS hose and sensor out from between the seat cushion support wires.

    GFD199295Courtesy of FORD MOTOR COMPANY

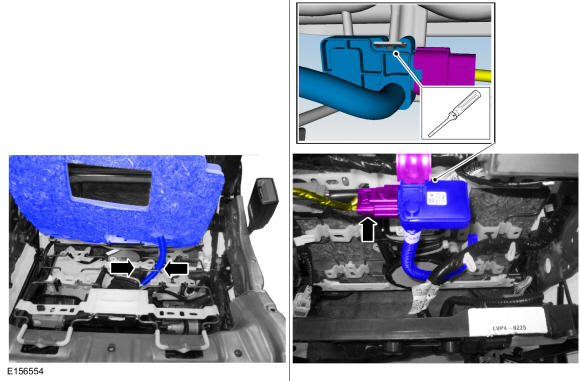

  4. NOTE: Passenger seat only.

    • Disconnect the OCS sensor electrical connector, release the tab and remove the OCS sensor.

    • Route the OCS sensor and hose through the seat cushion suspension wires.

GFD199296Courtesy of FORD MOTOR COMPANY
