Front Seat Power Lumbar Assembly: Removal

Remove the front seat. Refer to: Front Seat .
Detach the electrical connector retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY

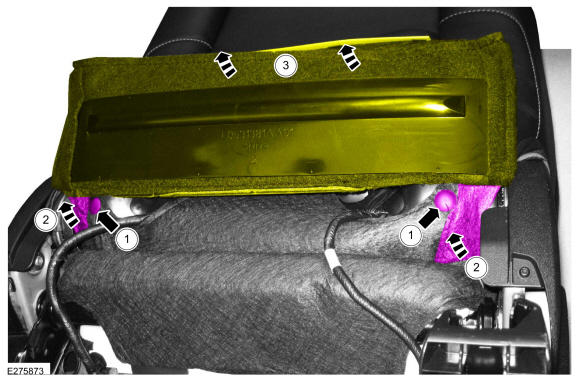

1. Remove the pin-type retainers.
2. Detach the hook-and-loop strips.
3. Lift the backrest cover flap.
Courtesy of FORD MOTOR COMPANY

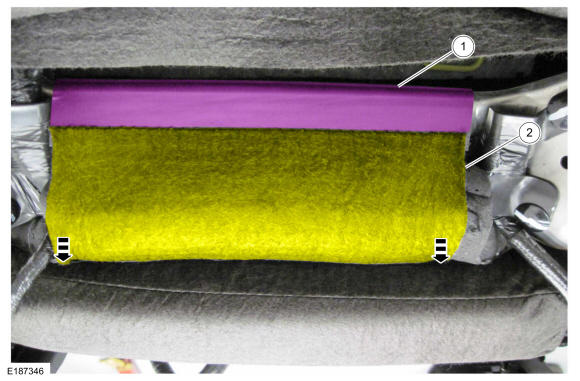

Position the front seat backrest cover.
1. Release the J-clip.
2. Position the backrest cover from between the seat cushion and backrest cushion.
Courtesy of FORD MOTOR COMPANY

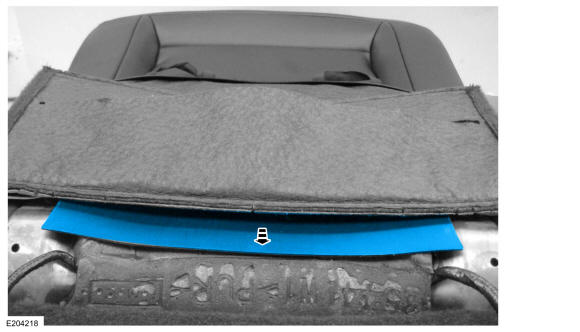

Remove the backrest cover insert.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

Partially invert the backrest cover enough to access the hog rings.

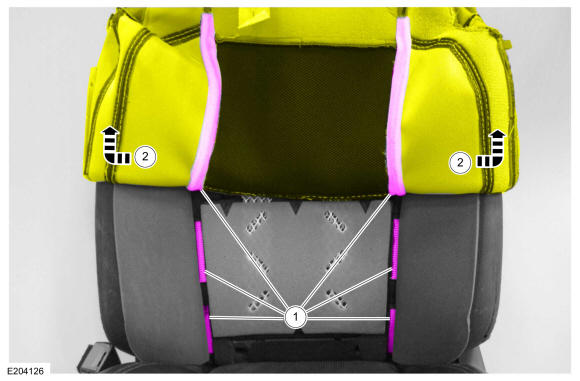

1. Release the hook-and-loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY

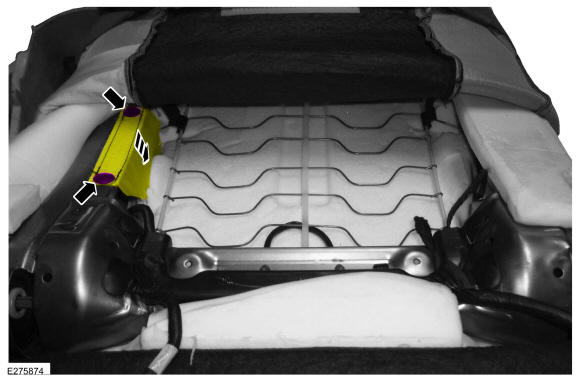

Remove the pin-type retainers from the deployment chute wrap and begin feeding it through the backrest foam.

Courtesy of FORD MOTOR COMPANY

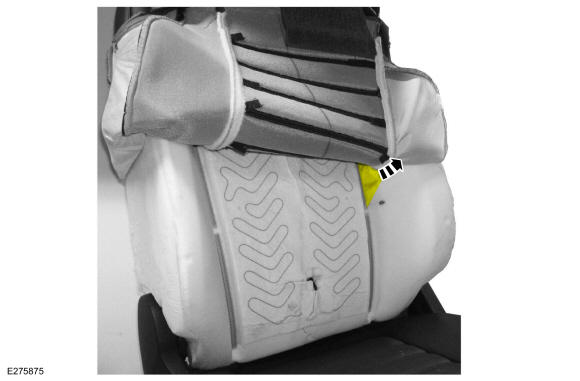

Pull the deployment chute wrap out of the backrest foam.

Courtesy of FORD MOTOR COMPANY

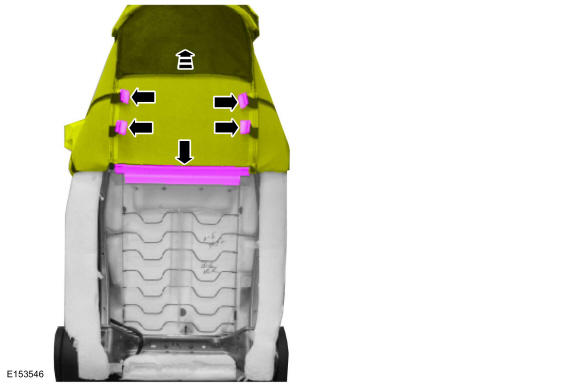

Lift the backrest cover and release the J-clips from the lumbar wires and backrest frame.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the backrest blower motor. REFER to: Front Seat Backrest Blower Motor .

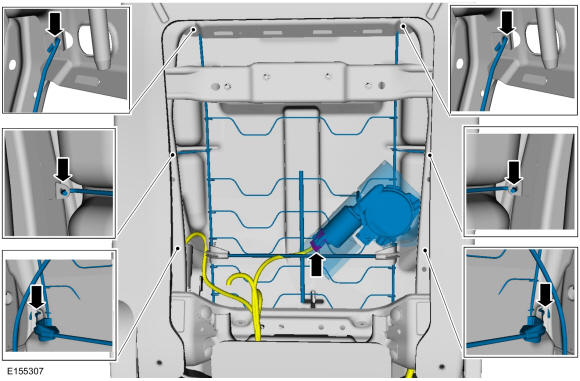

Disconnect the electrical connector, release the J-hooks and remove the power lumbar assembly.

Courtesy of FORD MOTOR COMPANY
