Front Head Restraint Guide Sleeve: Removal

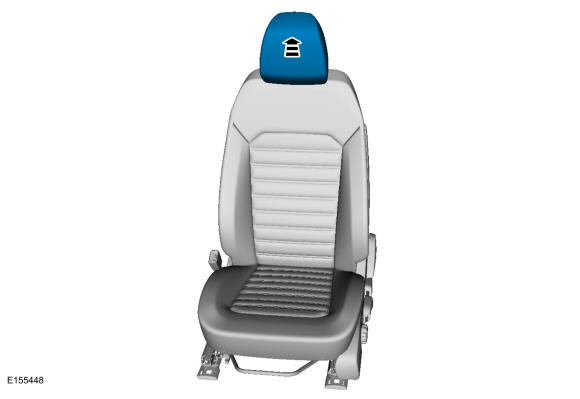

  1. Remove the head restraint.
    GFD199290Courtesy of FORD MOTOR COMPANY

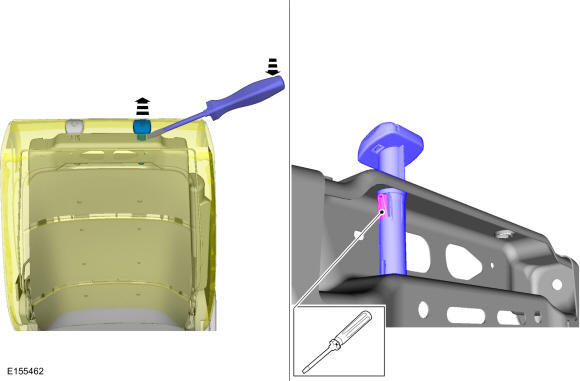

  2. Release the locking tabs and remove the front head restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD199291Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not reuse the head restraint guide sleeves.

    Discard the head restraint guide sleeves.

GFD199292Courtesy of FORD MOTOR COMPANY
