Pinpoint Test S : DTC B120A:01, B120A:98, B14BB:01, B14BB:11, B14BB:12, B14BB:13, B14BB:1A And B14C0:11

  1. WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System (SRS) deployment. Never compromise or depart from these instructions. Failure to precisely follow all instructions could result in serious personal injury from an accidental deployment.
  2. S1 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

    • WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    • Disconnect: Driver Side Airbag In-line C3368 .

    • Disconnect: Passenger Side Airbag In-line C3206 .

    • Ignition ON.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341D-3
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-2
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-10
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-11
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341E-4
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-2
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-7
      GFD196325Courtesy of FORD MOTOR COMPANY
      Ground

    Are any voltages present?

    Yes  REPAIR the affected circuit. GO to  S13
    No  GO to  S2
  3. S2 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341D-3
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-10
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-11
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341E-4
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-7
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  GO to  S5
    No  GO to  S3
  4. S3 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND WITH THE CUSHION BLOWER MOTOR DISCONNECTED

    • Disconnect: Passenger Cushion Blower Motor C3040 .

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341D-3
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-10
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-11
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341E-4
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-7
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
    No  GO to  S4
  5. S4 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND WITH THE BACKREST BLOWER MOTOR DISCONNECTED

    • Disconnect: Passenger Backrest Blower Motor C3039 .

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341D-3
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-10
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341D-11
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C341E-4
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-2
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground
      C341E-7
      GFD196326Courtesy of FORD MOTOR COMPANY
      Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  REPAIR the affected circuit. GO to  S13
    No  INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor . GO to  S13
  6. S5 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR AN OPEN

    • Disconnect: Passenger Cushion Blower Motor C3040 .

    Are the resistances less than 3 ohms?

    Yes  GO to  S6
    No  REPAIR the affected circuit. GO to  S13
  7. S6 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TOGETHER

    • Disconnect: Passenger Backrest Blower Motor C3039 .

    Are the resistances greater than 10, 000 ohms?

    Yes  GO to  S7
    No  REPAIR the affected circuits. GO to  S13
  8. S7 CHECK THE RESISTANCE OF THE PASSENGER SEAT CUSHION BLOWER MOTOR THERMO-ELECTRIC DEVICE (TED)

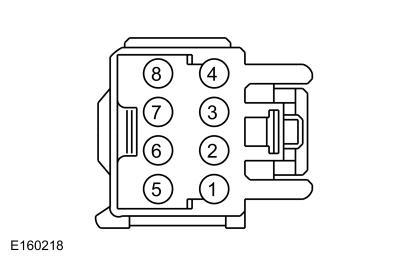

    • Measure the component side resistance  between:
      Positive Lead Measurement / Action Negative Lead
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-1, Component Side
      GFD196326Courtesy of FORD MOTOR COMPANY
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-2, Component Side

    Is the resistance between 0. 9 and 10 ohms?

    Yes  GO to  S8
    No  INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
  9. S8 CHECK THE RESISTANCE OF THE PASSENGER SEAT CUSHION BLOWER MOTOR

    • NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not faulty.

      Measure the component side resistance  between:

      Positive Lead Measurement / Action Negative Lead
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-3, Component Side
      GFD196326Courtesy of FORD MOTOR COMPANY
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-4, Component Side

    Is the resistance between 4, 000 and 10, 000 ohms?

    Yes  GO to  S9
    No  INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
  10. S9 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR SPEED CONTROL AND BLOWER OUTPUT CIRCUITS FOR AN INTERNAL SHORT TOGETHER

    • Measure the component side resistance  between:
      Positive Lead Measurement / Action Negative Lead
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-3, Component Side
      GFD196326Courtesy of FORD MOTOR COMPANY
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-7, Component Side

    Is the resistance greater than 2M ohms?

    Yes  GO to  S10
    No  INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
  11. S10 CHECK THE PASSENGER SEAT CUSHION BLOWER MOTOR THERMISTOR

    • Measure the component side resistance  between:
      Positive Lead Measurement / Action Negative Lead
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-5, Component Side
      GFD196326Courtesy of FORD MOTOR COMPANY
      GFD196330Courtesy of FORD MOTOR COMPANY

      C3040-8, Component Side

    • Compare the measured resistance value with the following table:
      Ambient Temperature Resistance
      0-10 ° C (32-50 ° F) 2, 782-1, 663 ohms
      10-20 ° C (50-68 ° F) 1, 837-1, 140 ohms
      20-30 ° C (68-86 ° F) 1, 260-806 ohms
      30-40 ° C (86-104 ° F) 893-570 ohms
      40-50 ° C (104-122 ° F) 630-428 ohms

    Is the resistance within the limits indicated?

    Yes  GO to  S11
    No  INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
  12. S11 DETERMINE CUSHION BLOWER MOTOR OR SCME (FRONT SEAT CLIMATE CONTROL MODULE) FAILURE

    • Remove the cushion blower motor from the driver seat and install it on the passenger seat.

    • Connect: Passenger Cushion Blower Motor C3040 .

    • Start the engine and check operation of the passenger seat climate controlled seat system.

    Does the seat operate with the cushion blower motor from the other seat installed?

    Yes  INSTALL a new seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor . GO to  S13
    No  GO to  S12
  13. S12 CHECK THE SCME (FRONT SEAT CLIMATE CONTROL MODULE) OPERATION

    • Ignition OFF.

    • Disconnect and inspect all of the DSM connectors.

    • Repair:

      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary

    • Reconnect the DSM connectors. Make sure they seat and latch correctly.

    • NOTE: Do not reconnect Driver Side Airbag In-Line C3368 or Passenger Side Airbag In-Line C3206 at this time.

      Reconnect all previously disconnected connectors.

    • Ignition ON.

    • Operate the system and determine if the concern is still present.

    Is the concern still present?

    Yes  CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new DSM. Refer to: Driver Front Seat Module (DSM) . GO to  S13
    No  The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to  S13
  14. S13 CHECK FOR SRS (SUPPLEMENTAL RESTRAINT SYSTEM) DIAGNOSTIC TROUBLE CODES (DTCS)

    • WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

      Ignition OFF.

    • Connect: Driver Side Airbag In-line C3368 .

    • Connect: Passenger Side Airbag In-line C3206 .

    • Connect all previously disconnected connectors.

    • Ignition ON.

    • Using a diagnostic scan tool, clear the RCM Diagnostic Trouble Codes (DTCs).

    • Cycle the ignition OFF then ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    Are any RCM Diagnostic Trouble Codes (DTCs) retrieved during self-test?

    Yes  REFER to: Supplemental Restraint System (Except Hybrid) .
    No  Repair is complete. RETURN the vehicle to the customer.
