Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
  2. Remove the console top trim panel. Refer to: Instrument Panel And Console (Hybrid/Energi) .

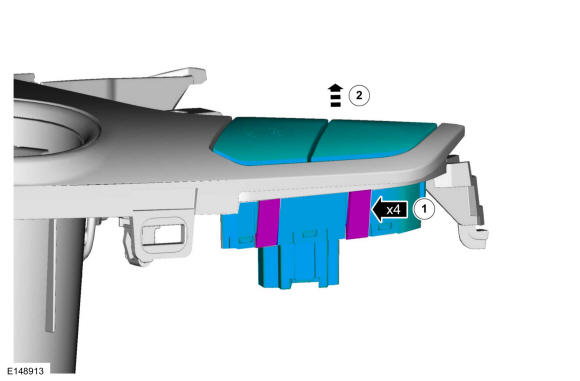

  3. NOTE: Two tabs on each side.

    1. Release the tabs.
    2. Remove the active park assist switch.

GFD198649Courtesy of FORD MOTOR COMPANY
