Turbocharger - Component Location

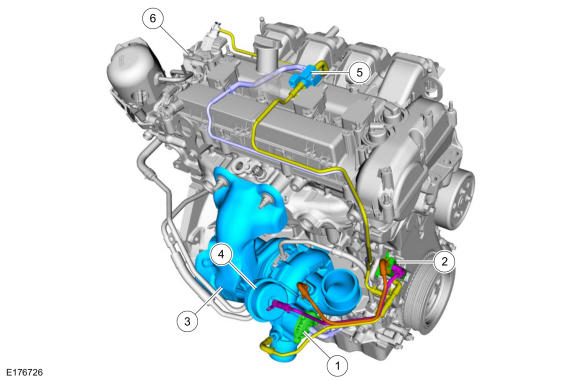

2.3L EcoBoost Turbocharger
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve |
| 2 | Wastegate control valve solenoid |
| 3 | Turbocharger |
| 4 | Wastegate actuator |
| 5 | Turbocharger bypass valve solenoid |
| 6 | Vacuum pump |

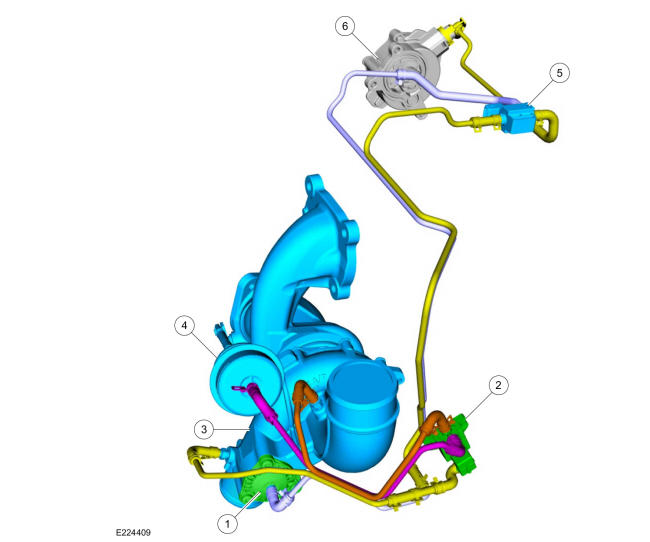

2.3L EcoBoost Turbocharger Control
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve |
| 2 | Wastegate control valve solenoid |
| 3 | Turbocharger |
| 4 | Wastegate actuator |
| 5 | Turbocharger bypass valve solenoid |
| 6 | Vacuum pump |
