Parking Aid

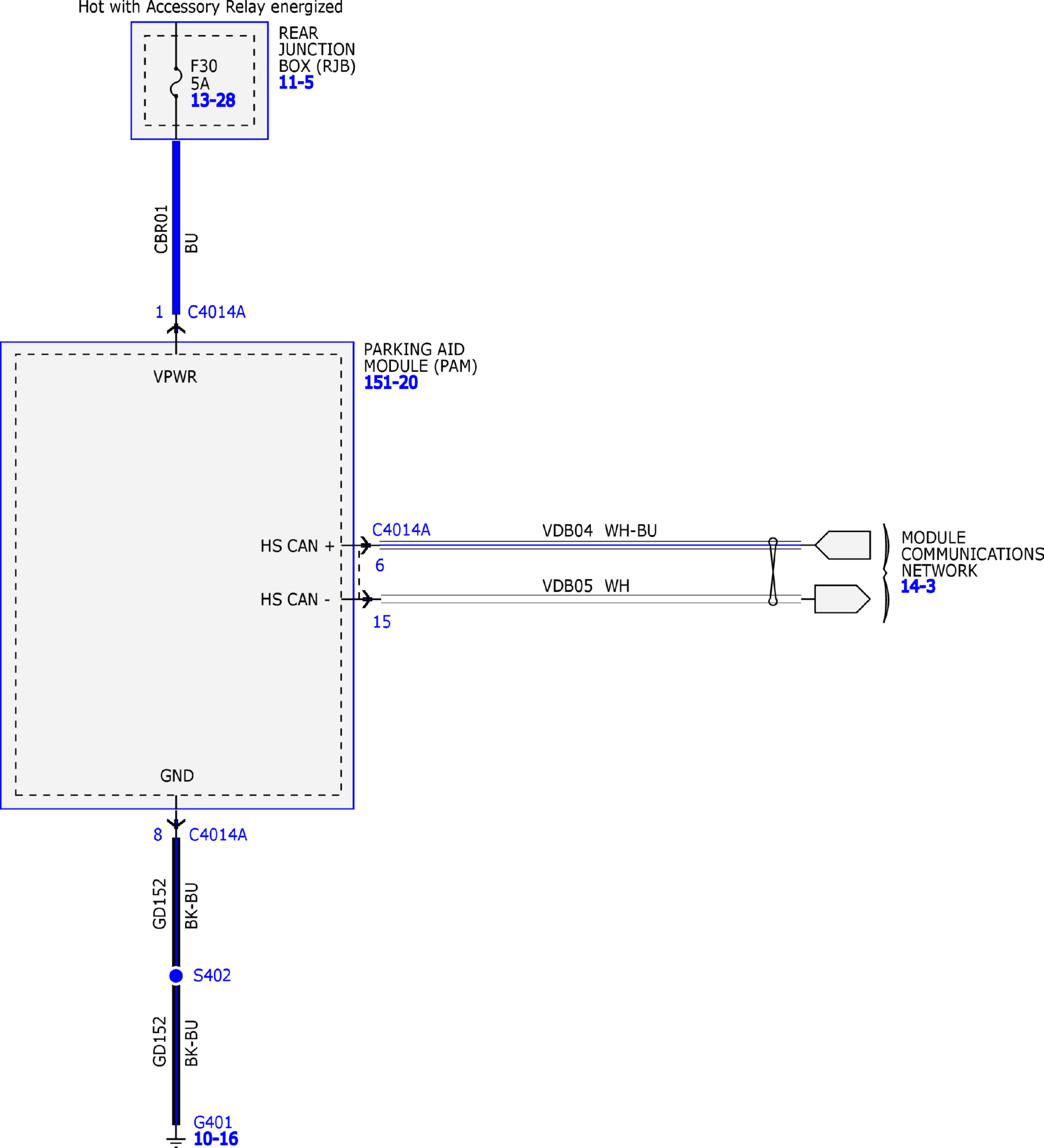

Fig 1: Parking Aid Wiring Diagram (1 of 3)
GFDW53741Courtesy of FORD MOTOR COMPANY

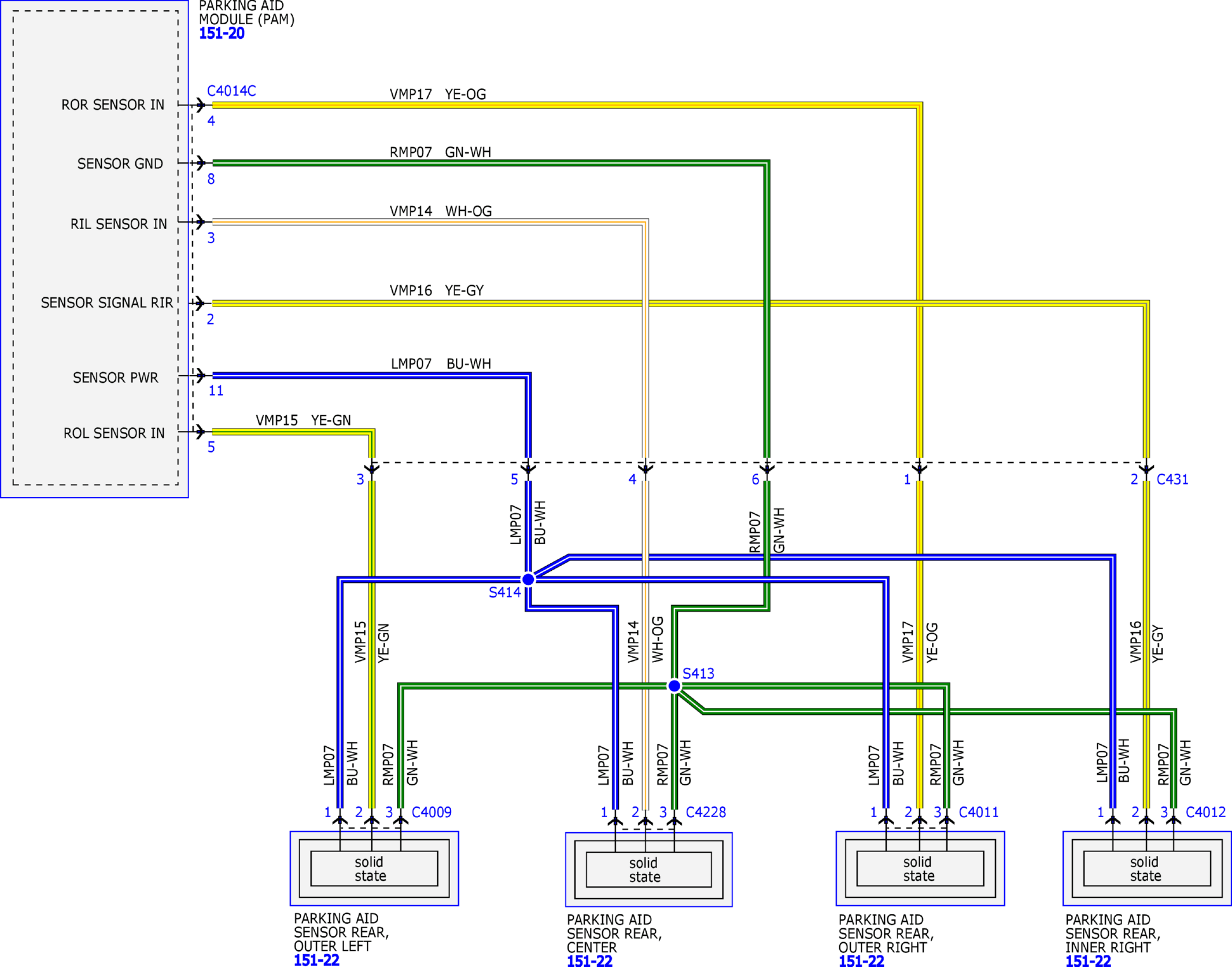

Fig 2: Parking Aid Wiring Diagram (2 of 3)
GFDW53742Courtesy of FORD MOTOR COMPANY
Fig 3: Parking Aid Wiring Diagram (3 of 3)
GFDW53743Courtesy of FORD MOTOR COMPANY
