Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Accelerator Pedal Position (APP) Sensor .

2.

Refer to: Stoplamp Switch .

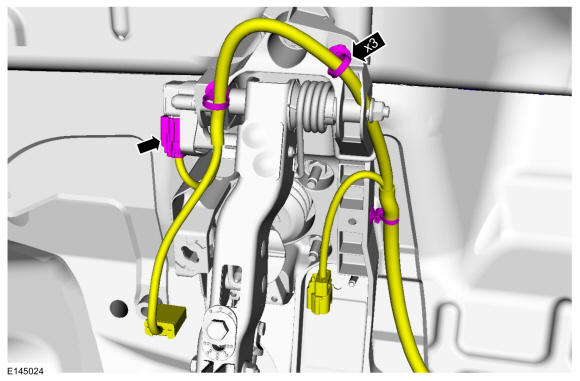

3.

GFD64990

Courtesy of FORD MOTOR COMPANY

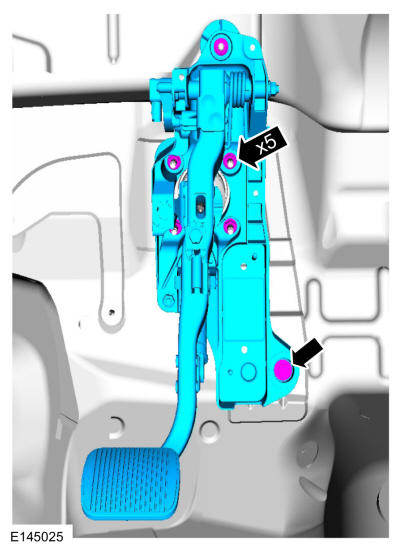

4.

Torque: 18 lb.ft (25 Nm)

GFD64991

Courtesy of FORD MOTOR COMPANY
