Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6

Adjustment

• 1.

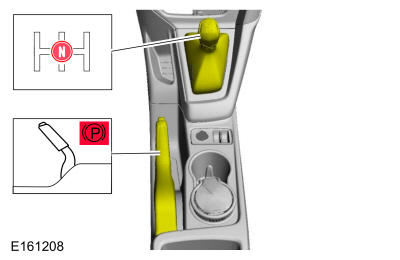

  Position the gearshift in N and apply the P brake.

Courtesy of FORD MOTOR COMPANY

• 2.

  Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

• 3.

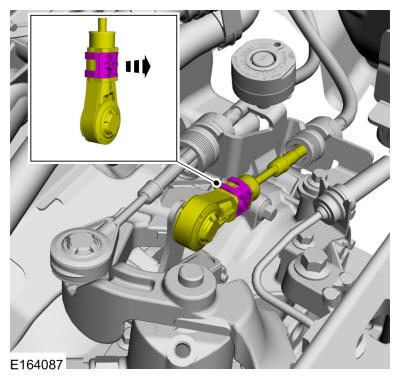

  Unlock the adjuster.

Courtesy of FORD MOTOR COMPANY

• 4.

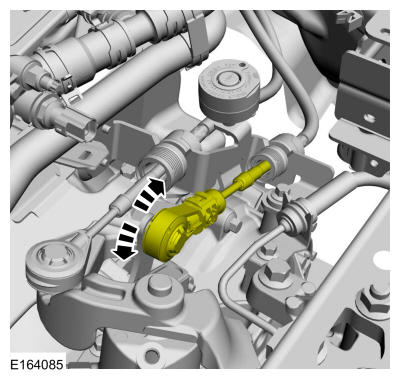

  Move the gearshift select cable back and forth and verify free motion.

Courtesy of FORD MOTOR COMPANY

• 5.


  NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N position.

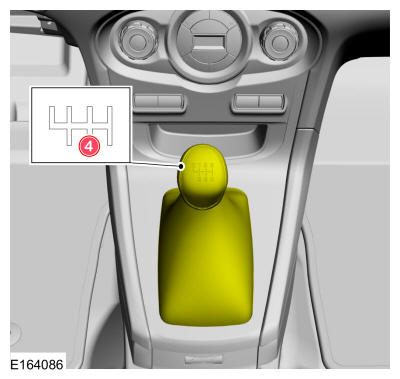

  Position the gearshifter in 4th gear.

Courtesy of FORD MOTOR COMPANY

• 6.

  Lock the adjuster.

Courtesy of FORD MOTOR COMPANY

• 7.

  Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

• 8.

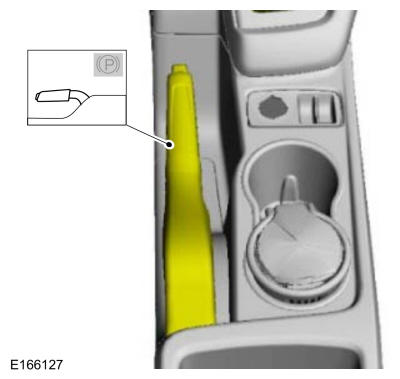

  Release the parking brake.

Courtesy of FORD MOTOR COMPANY
