Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Health and Safety Precautions .
- 3.

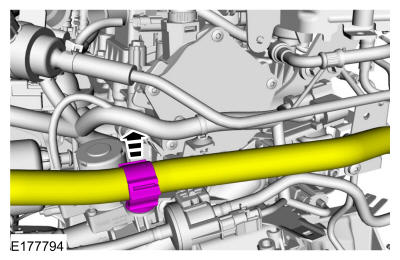

- Disconnect and position aside the crankcase ventilation tube.

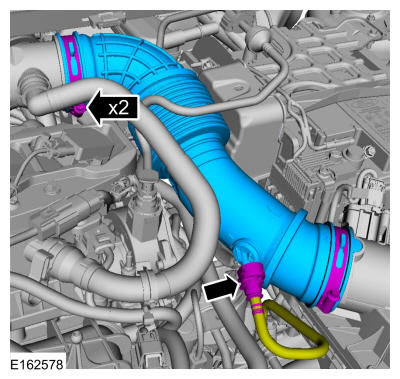

- Loosen the clamps and remove the air cleaner outlet pipe.
- 5.

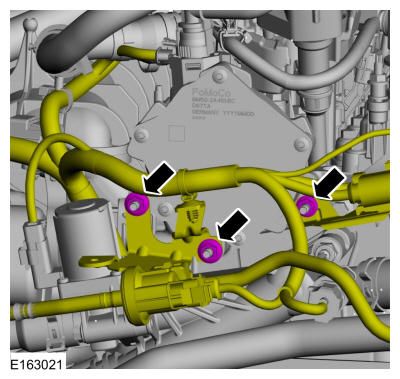

Remove the nuts and position aside the evaporative emission purge valve and mounting bracket.Torque: 89 lb.in (10 Nm)
- 6.

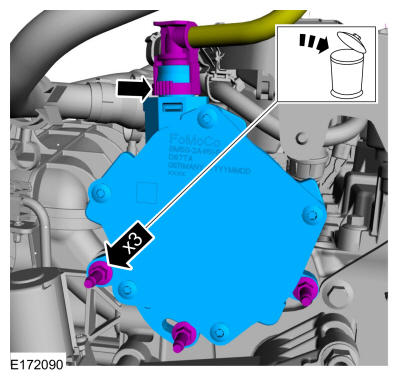

- Release the coupling and disconnect the vacuum tube.
- Remove the bolts and vacuum pump. Discard the bolts.
Torque: 89 lb.in (10 Nm)

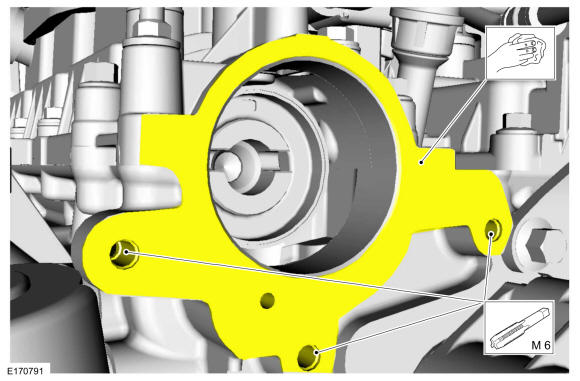

- 8.NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.
Clean the mating surfaces and tap the bolt holes.
