Section 9 (Engine Ignition System - 1.0L ECOBOOST (90KW/120PS))
>>
Description And Operation
>>

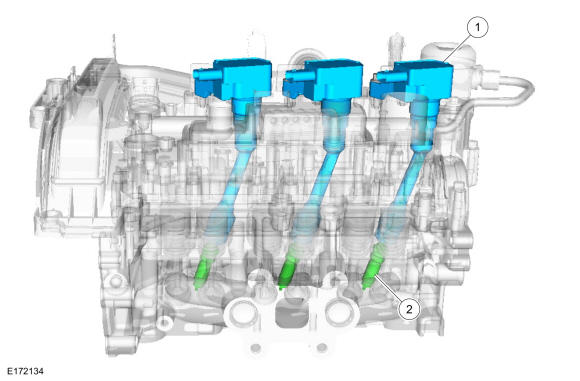

Engine Ignition - Component Location
>>
1.0L EcoBoost
1.0L EcoBoost
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Ignition coil-on-plug(s)
2
Spark plug(s)
Courtesy of FORD MOTOR COMPANY
