Variable Camshaft Timing (VCT) Oil Control Solenoid: Installation

WARNING: This page is about a different variant/trim than selected.

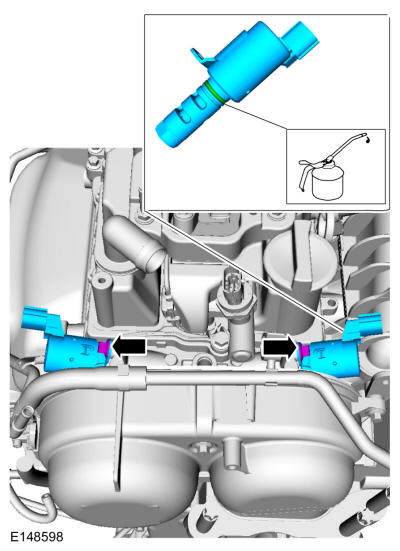

1.

NOTE: Make sure that the components are installed to the position noted before removal.
- Lubricate the o ring with clean engine oil.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Install the VCT oil control solenoids and tighten the bolts.
  Torque: 71 lb.in (8 Nm)

GFD140014

Courtesy of FORD MOTOR COMPANY

2.

Connect the electrical connectors.

GFD140012

Courtesy of FORD MOTOR COMPANY

3.

Connect the crankcase breather tube.

GFD140011

Courtesy of FORD MOTOR COMPANY

4.

Install the engine appearance cover.

GFD139331

Courtesy of FORD MOTOR COMPANY
