Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist.Refer to: Jacking and Lifting - Overview .
- 2.
- 1.

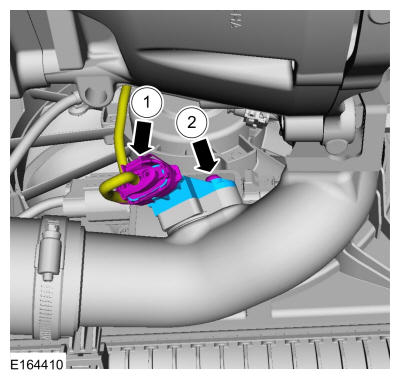

Disconnect the electrical connector.
- 2.
Remove the retainer and the turbocharger boost pressure sensor.Torque: 53 lb.in (6 Nm)
