Rear Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

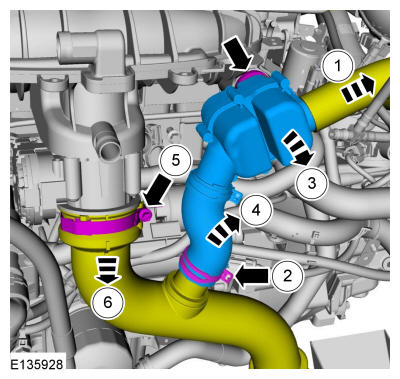

Release the hose clamp and disconnect the hose from the crankcase vent oil separator.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

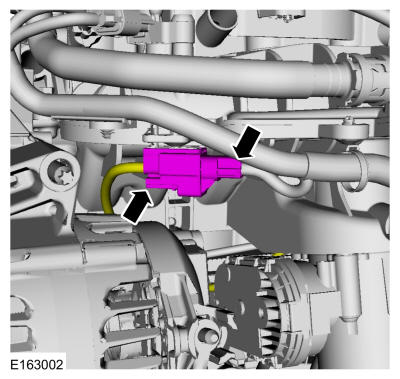

Disconnect the KS electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
NOTE:
Note the position of the component before removal. The KS must be installed in the 10 o'clock position.

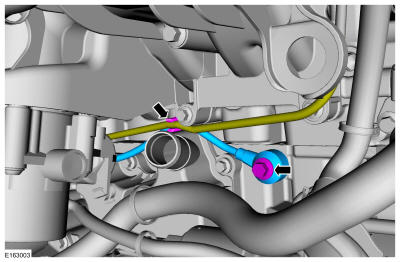

Remove the bolt and the KS.
Torque: 159 lb.in (18 Nm)
 Courtesy of FORD MOTOR COMPANY
|
