Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the engine appearance cover.
GFD139331Courtesy of FORD MOTOR COMPANY

  1. 2.

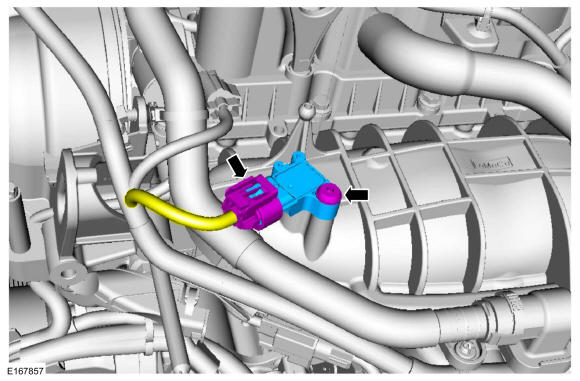

    Disconnect the electrical connector, remove the retainer and the MAP sensor.

    Torque: 27 lb.in (3 Nm)

GFD140025Courtesy of FORD MOTOR COMPANY
