Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different variant/trim than selected.

1.

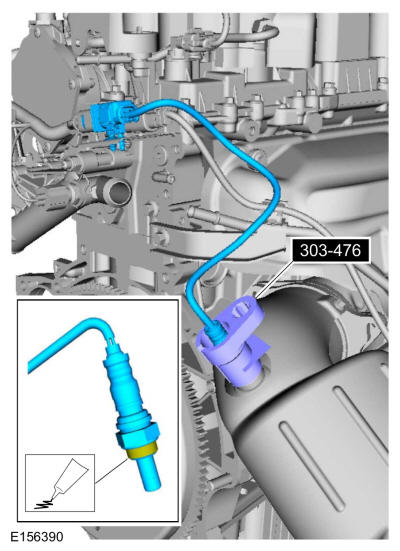

Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below.Install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque: 35 lb.ft (48 Nm)

GFD140017

Courtesy of FORD MOTOR COMPANY

2.

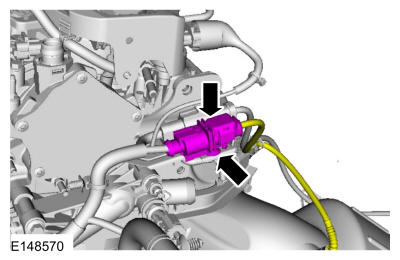

Connect the HO2S electrical connector and attach the wiring harness retainer.

GFD140015

Courtesy of FORD MOTOR COMPANY

3.

Refer to: Air Cleaner Outlet Pipe .
