Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Release the fuel system pressure.Refer to: Fuel System Pressure Release .

  1. 2.

    Disconnect the battery ground cable.Refer to: Battery Disconnect and Connect .

  1. 3.

    Remove engine appearance cover.
GFD139331Courtesy of FORD MOTOR COMPANY

  1. 4.

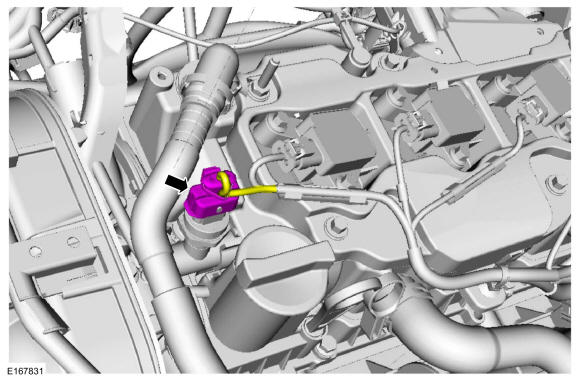

    Disconnect the FRP sensor electrical connector.
GFD140022Courtesy of FORD MOTOR COMPANY

  1. 5.

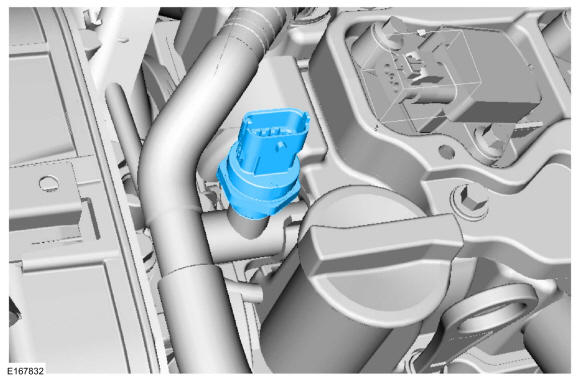

    Remove the FRP sensor.
GFD140023Courtesy of FORD MOTOR COMPANY
