Front Knock Sensor (KS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the throttle body.Refer to: Throttle Body .

2.

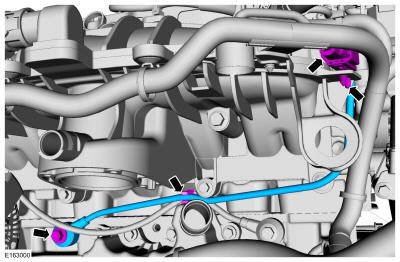

NOTE: Note the position of the component before removal. The KS must be installed in the 2 o'clock position.
- Disconnect the KS electrical connector.
- Remove the bolt and the KS.
  Torque: 159 lb.in (18 Nm)

GFD140008

Courtesy of FORD MOTOR COMPANY
