Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove air cleaner outlet pipe.Refer to: Air Cleaner Outlet Pipe .

  1. 2.

    NOTE: Have the new component ready to install to reduce coolant loss.
    NOTE: Be prepared for escaping fluid.

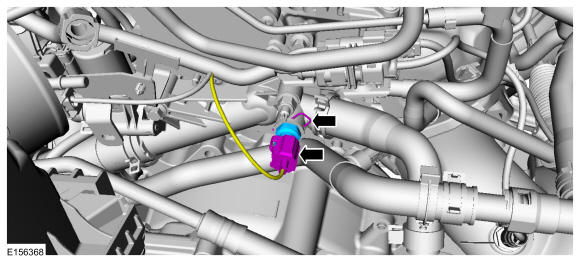

    • Disconnect the ECT electrical connector.
    • Release the retaining clip.
    • Remove the ECT sensor.
GFD140021Courtesy of FORD MOTOR COMPANY
