Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist.Refer to: Jacking and Lifting - Overview .

  1. 2.

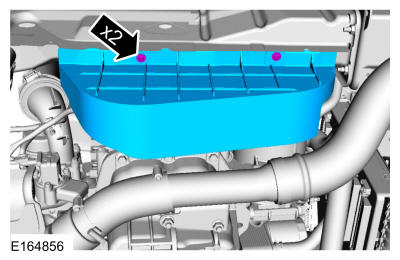

    Remove the retainers and the heat shield.
GFD139312Courtesy of FORD MOTOR COMPANY

  1. 3.

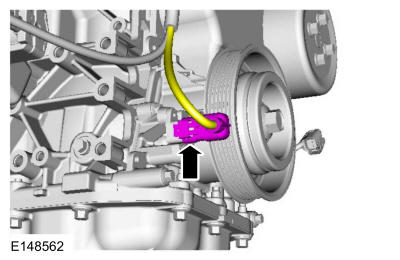

    Disconnect the CKP sensor electrical connector.
GFD140005Courtesy of FORD MOTOR COMPANY

  1. 4.

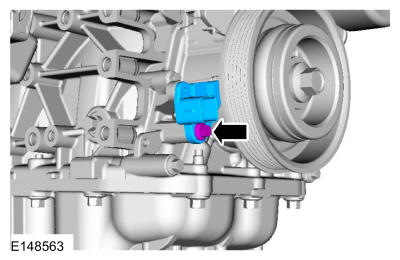

    • Remove the bolt.

      Torque: 71 lb.in (8 Nm)

    • Remove the CKP sensor.
GFD140006Courtesy of FORD MOTOR COMPANY
