Clutch Pedal Position (CPP) Switch: Removal
WARNING: This page is about a different variant/trim than selected.

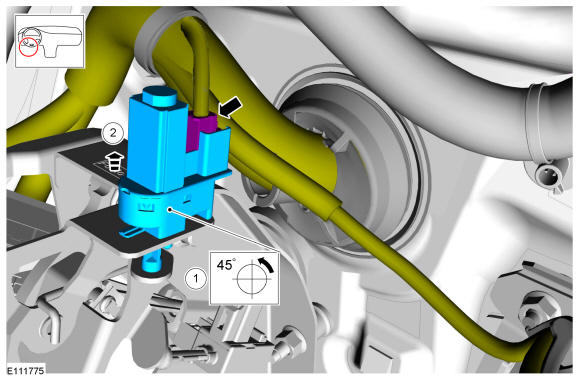

Top of travel switch
- 1.
Disconnect the electrical connector and remove CPP switch from the bracket.
 Courtesy of FORD MOTOR COMPANY
|

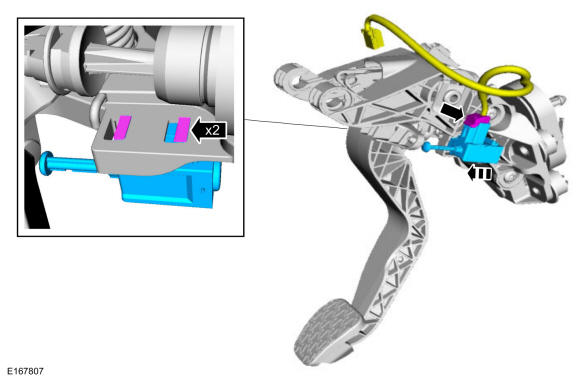

Bottom of travel switch
- 2.
Disconnect the electrical connector and remove CPP switch from the bracket.
 Courtesy of FORD MOTOR COMPANY
|
