Camshaft Position (CMP) Sensor RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the engine appearance cover.
GFD139331Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the air cleaner outlet pipe.Refer to: Air Cleaner Outlet Pipe .

  1. 3.

    Disconnect the quick release coupling from the air cleaner outlet pipe.

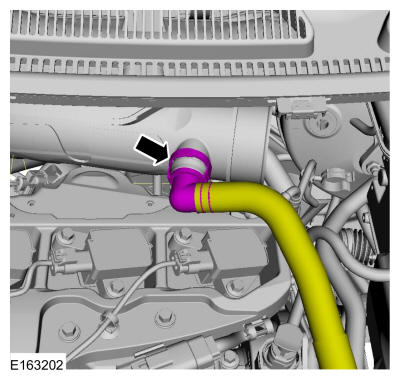

GFD140003Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor RH.

    Torque: 80 lb.in (9 Nm)

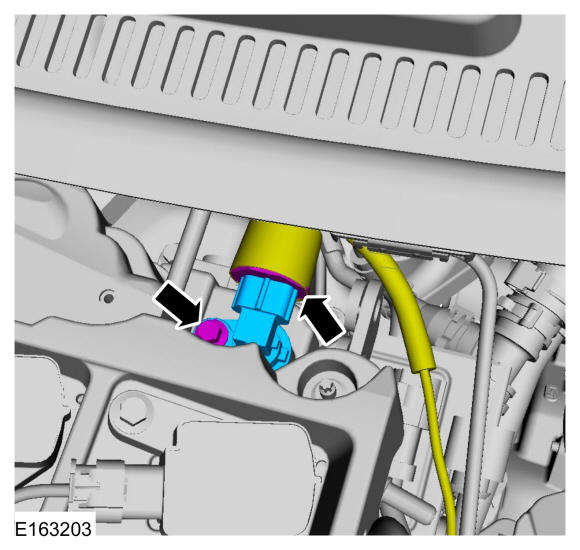

GFD140004Courtesy of FORD MOTOR COMPANY
