Camshaft Position (CMP) Sensor LH: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

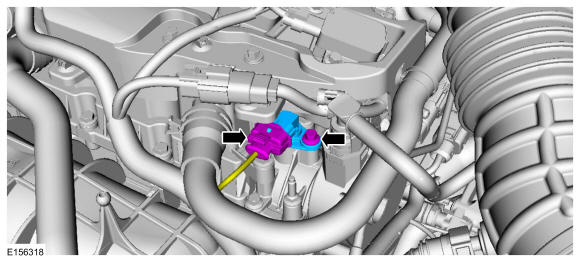

Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.Torque: 80 lb.in (9 Nm)
 Courtesy of FORD MOTOR COMPANY
|
