Catalytic Converter: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Exhaust fasteners are of a torque prevailing design. Use only new fasteners with the same part number as the original. Torque values must be used as specified during reassembly to make sure of correct retention of exhaust components.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the battery tray. Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .
- 4.

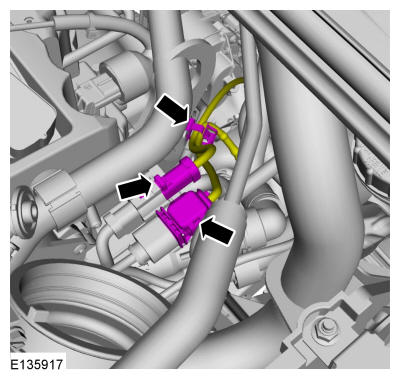

Detach the wiring harness retainer, then disconnect the HO2S and catalyst monitor sensor electrical connectors.

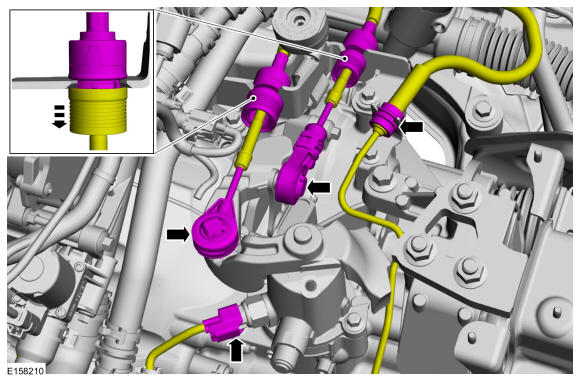

- 5.NOTE: Gearshift cables must not be kinked or bent.
- Disconnect the selector lever cable. Detach the selector lever cables from the selector lever cable brackets.
- Disconnect the electrical connector.
- 7.
Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
- 8.
Remove the CMS (catalyst monitor sensor). Refer to: Catalyst Monitor Sensor .
- 11.NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.
Support the exhaust flexible pipe with a support wrap or suitable splint. Use the General Equipment: Cable Ties
- 14.

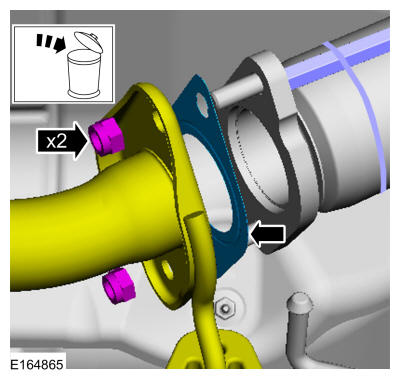

- Remove and discard the nuts.
Torque: 35 lb.ft (48 Nm)
- Remove and discard the gasket.
- Position the exhaust system aside.

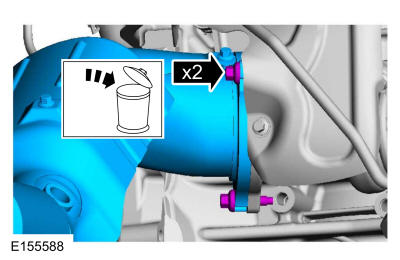

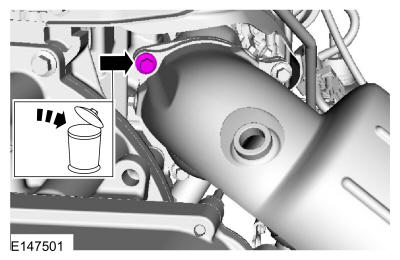

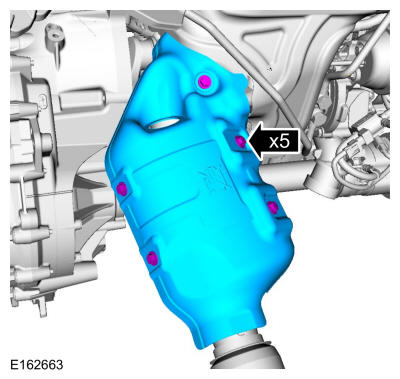

- Remove and discard the nuts.
