Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

1.

To install, reverse the removal procedure.

2.

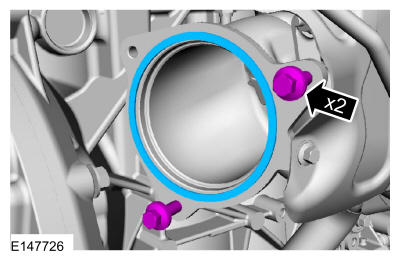

Install a new gasket and loosely install the 2 bolts.

GFD139630

Courtesy of FORD MOTOR COMPANY

3.

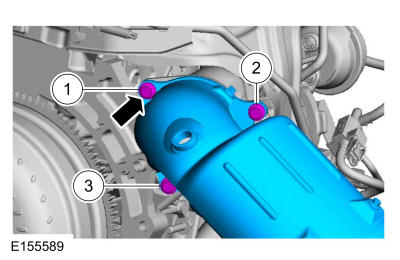

NOTE: Failure to tighten the catalytic converter manifold fasteners in this sequence will cause the converter to develop an exhaust leak.

NOTE: Tighten the catalytic converter bolts in this sequence.
- 1.

  Position the catalytic converter on the 2 bolts and install the upper bolt.
  Torque: 18 lb.ft (25 Nm)
- 2.

  Tighten the RH catalytic converter bolt.
  Torque: 18 lb.ft (25 Nm)
- 3.

  Tighten the LH catalytic converter bolt.
  Torque: 18 lb.ft (25 Nm)

GFD139631

Courtesy of FORD MOTOR COMPANY
