Clutch Master Cylinder - 6-Speed Manual Transmission - B6: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Refer to: Clutch Pedal .

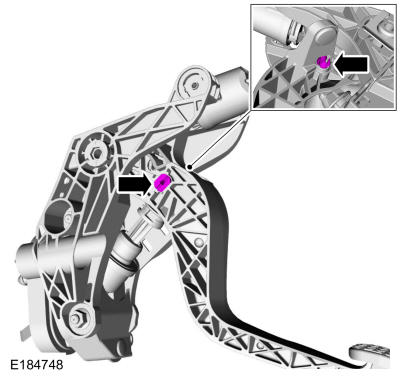

- 3.NOTE: The 4 tabs on the clutch pedal pin are very brittle and can easily be broke if not compressed evenly when removing the clutch pedal pin. Use care when compressing the 4 tabs or damage to the clutch pedal pin can occur.
Carefully compress the 4 tabs and remove the clutch pedal pin.
- 4.

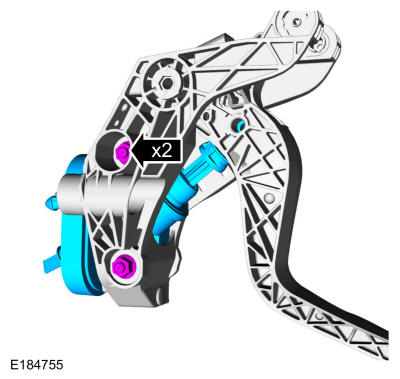

Remove the 2 nuts and bolts and remove the master cylinder from the clutch pedal assembly.Torque: 18 lb.ft (25 Nm)
