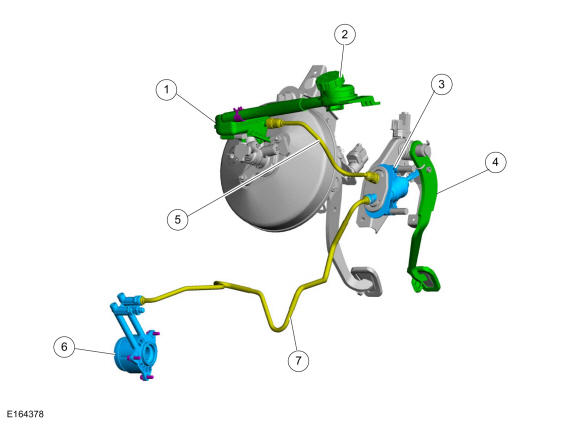

Clutch Controls
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
2140 |
Brake fluid master cylinder |
| 2 |
2K478 |
Brake fluid filling reservoir |
| 3 |
7A543 |
Clutch master cylinder |
| 4 |
7519 |
Clutch pedal |
| 5 |
7K502 |
Clutch reservoir hydraulic tube |
| 6 |
7A564 |
Clutch slave cylinder |
| 7 |
7A512 |
Clutch hydraulic tube |
