Timing Belt Tensioner: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the timing belt. Refer to REMOVAL .
- 2.WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

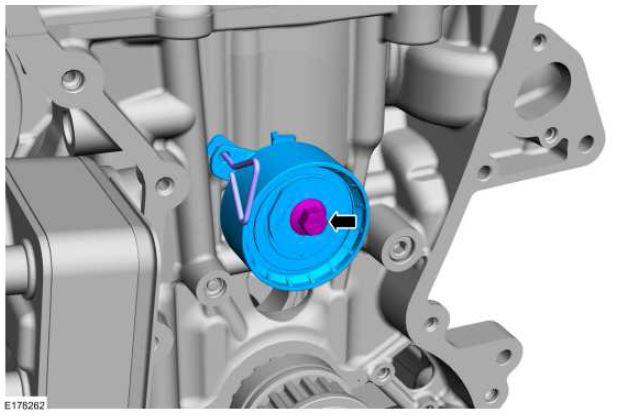

Remove the timing belt tensioner.
Torque: 19 lb.ft (26 Nm)
