Oil Pressure Switch: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

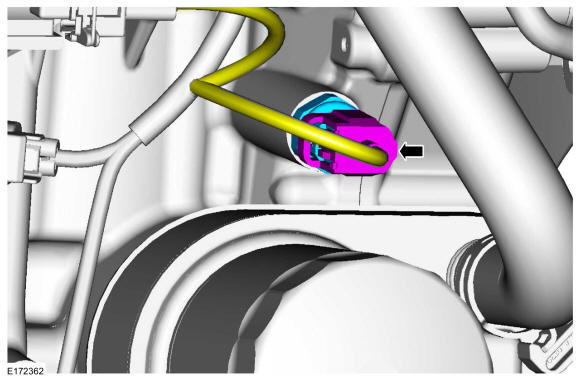

Disconnect the electrical connector and remove the oil pressure switch.
Torque: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
