Oil Pan: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the catalytic converter. Refer to: Catalytic Converter .
- 3.WARNING: Be prepared to collect escaping fluid.

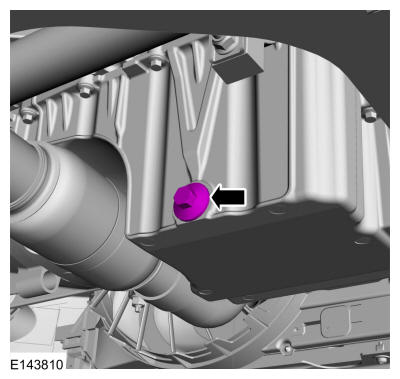

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque: 18 lb.ft (25 Nm)
- 4.WARNING: Be prepared to collect escaping fluid.
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
