Oil Pan: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.NOTE: Make sure that the mating faces are clean and free of foreign material.
- 1.
Make sure that the surface is clean and free of foreign material. Use the General Equipment: Plastic Scraper
- 2.
Make sure that the surface is clean and free of foreign material.Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
- 1.
- 2.NOTE: The component must be installed within 10 minutes of applying the sealant.
Apply a 3.5 mm (0.137 in) bead of silicone sealant.
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- 3.
- Install the oil pan and the bolts finger tight.

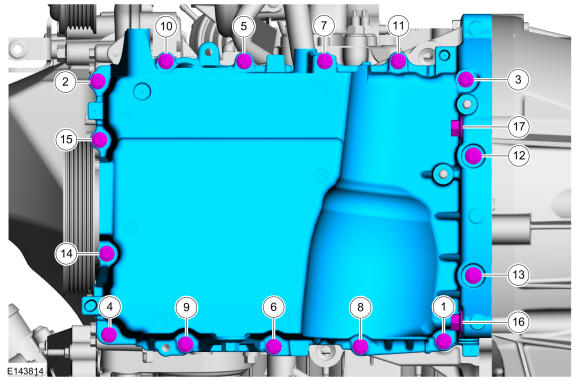

- Tighten the oil pan bolts in sequence shown below.
Torque:
1-2, M6x20 : 89 lb.in (10 Nm)
3, M6x75: 89 lb.in (10 Nm)
4-6, M6x20,: 89 lb.in (10 Nm)
7, M6x75,: 89 lb.in (10 Nm)
8-11, M6x20,: 89 lb.in (10 Nm)
12-13, M6x105,: 89 lb.in (10 Nm)
14, M6x75,: 89 lb.in (10 Nm)
15, M6x20,: 89 lb.in (10 Nm)
16-17, M10x45: 35 lb.ft (48 Nm)
- 4.

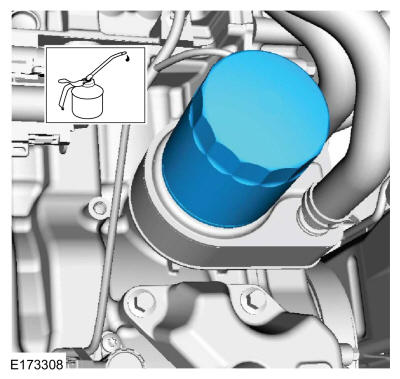

Lubricate the O-ring seal and install the engine oil filter.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 128 lb.in (14.5 Nm)
- 5.
Install the catalytic converter. Refer to: Catalytic Converter .
- 6.

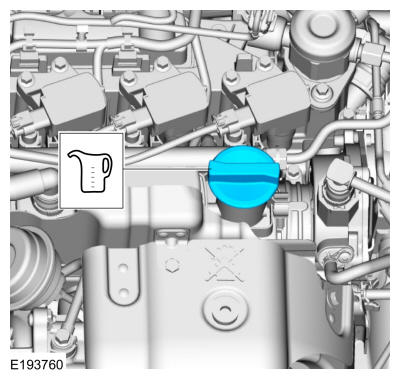

Fill the engine with clean engine oil. Refer to: Specifications .Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
