Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.
- 1.

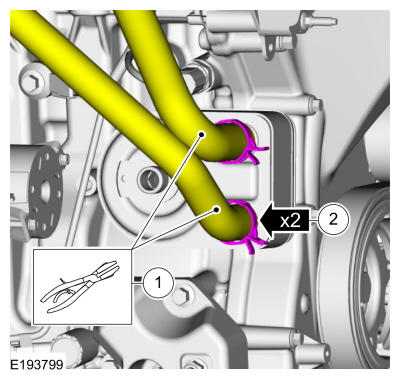

Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
- 2.
Using the hose clamp remover, remove the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- 1.
- 4.NOTE: If metal or foreign material is present in the oil cooler, mechanical concerns exist. To diagnose the mechanical concerns refer to Engine System - General Information .

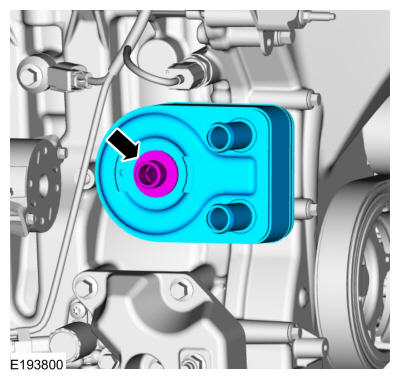

Remove the bolt and the oil cooler.
