Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

1.

To install, reverse the removal procedure.

2.

NOTE: Only tighten the bolts finger tight at this stage.

GFD138741

Courtesy of FORD MOTOR COMPANY

3.

Torque: 1-10: 89 lb.in (10 Nm)

Fig 1: Intake Manifold Tightening Sequence

GFD138742

Courtesy of FORD MOTOR COMPANY

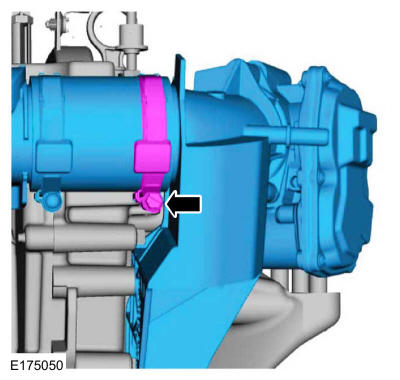

4.

Torque: 44 lb.in (5 Nm)

GFD138743

Courtesy of FORD MOTOR COMPANY
