Removal And Installation: Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the clutch disc and pressure plate. Refer to: Clutch Disc and Pressure Plate .
- 3.
- 1.

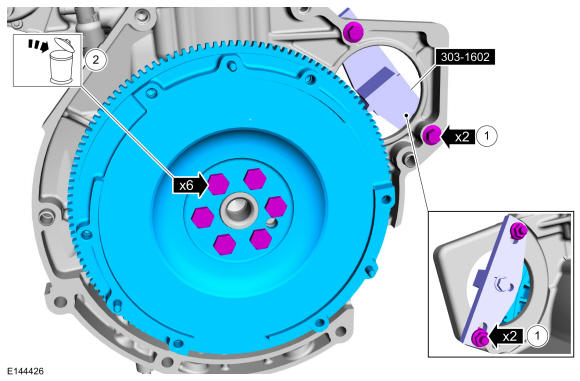

Use Special Service Tool: 303-1602 Locking Tool, Crankshaft.
- 2.
Remove the bolts and the flywheel. Discard the bolts.
- 1.
