Engine Front Cover: Installation

Make sure that the surface is clean and free of foreign material.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Make sure that the surface is clean and free of foreign material.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Apply beads of silicone sealant that are 4 mm (0.157 in) and 6 mm (0.236 in) as shown in the graphic below.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Apply beads of silicone sealant that are 4 mm (0.157 in) on the edge of the engine oil pan.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

• 1.


  NOTE: Make sure that new components are installed.

  Torque: 1-2, M6x60: 44 lb.in (5 Nm)

• 2.


  NOTE: Make sure that new components are installed.

  Torque: 3-6, M10x95: 89 lb.in (10 Nm)

• 3.


  NOTE: Make sure that new components are installed.

  Torque: 7-16 M6x60: 44 lb.in (5 Nm)

• 4.

  Torque:

  17-19 M6x60: 44 lb.in (5 Nm)

  20 M6x75: 44 lb.in (5 Nm)

• 5.

  Torque: 3-6: 30 lb.ft (40 Nm)

• 6.

  Torque:

  3-4:

  Stage 1: 52 lb.ft (70 Nm)

  Stage 2: 90 °

• 7.

  Torque:

  5-6:

  Stage 1: 52 lb.ft (70 Nm)

  Stage 2: 90 °

• 8.

  1-2

  Torque:

  Stage 1: 80 lb.in (9 Nm)

  Stage 2: 90 °

• 9.

  7-20

  Torque:

  Stage 1: 133 lb.in (15 Nm)

  Stage 2: 90 °

Torque: 89 lb.in (10 Nm)

• 1.

  Install the engine mount and the nuts.

  Torque: 59 lb.ft (80 Nm)

• 2.

  Install the engine mount bolts finger-tight.

Torque: 35 lb.ft (48 Nm)

Torque: 133 lb.in (15 Nm)

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

Torque: 18 lb.ft (25 Nm)

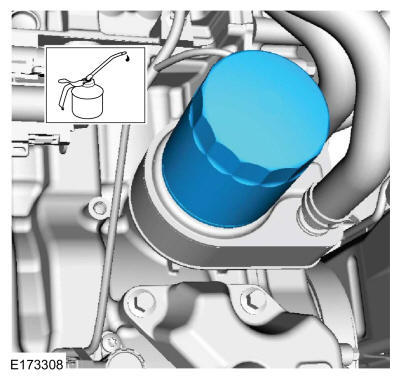

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque: 128 lb.in (14.5 Nm)

Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
