Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

1.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

2.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling And Bleeding .

3.

Remove the turbocharger. Refer to: Turbocharger .

4.

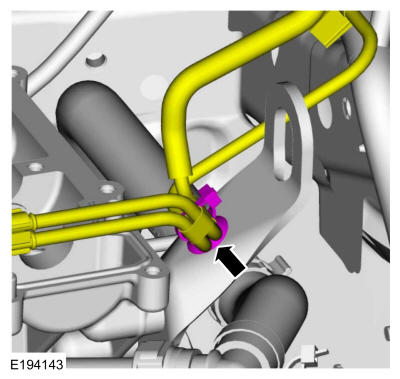

Detach the vacuum harness retainer.

GFD138704

Courtesy of FORD MOTOR COMPANY

5.

Remove the bolts and position the vacuum pump assembly aside.

GFD138663

Courtesy of FORD MOTOR COMPANY

6.

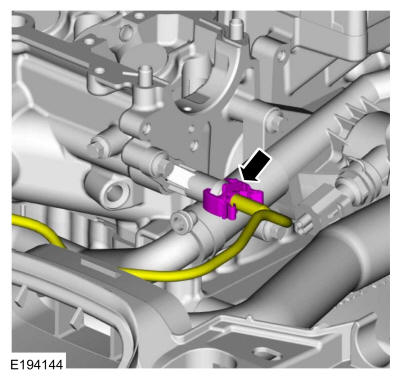

Release the coupling, position the coolant hose aside.

GFD138705

Courtesy of FORD MOTOR COMPANY

7.

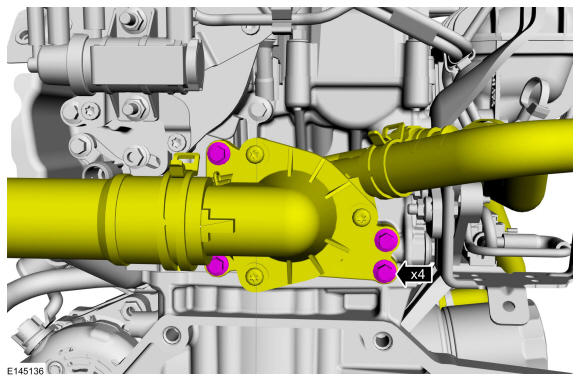

Remove the bolts and position the thermostat housing aside.

GFD138706

Courtesy of FORD MOTOR COMPANY

8.

Remove the camshafts. Refer to: Camshafts .

9.

NOTE: Note the position of the components before removal.

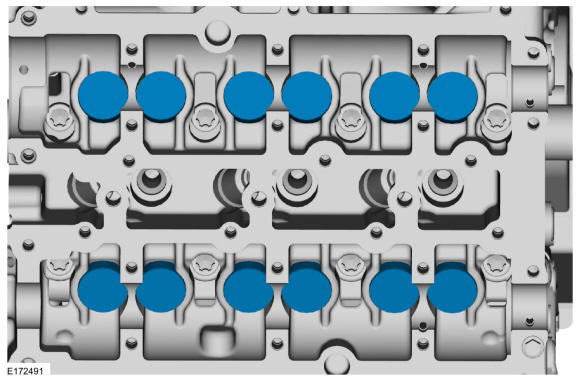

Remove the valve tappets.

GFD138707

Courtesy of FORD MOTOR COMPANY

10.

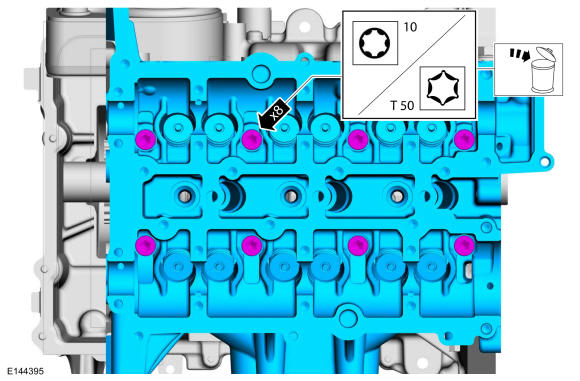

- Remove the bolts and the cylinder head.
- Discard the bolts.

GFD138708

Courtesy of FORD MOTOR COMPANY

11.

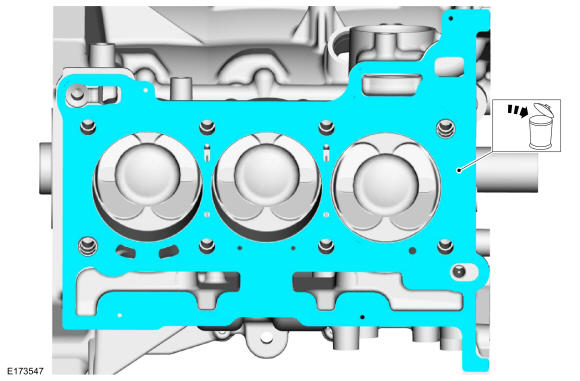

Remove and discard the cylinder head gasket.
