Removal And Installation: Camshafts: Installation

WARNING: This page is about a different variant/trim than selected.

1.

Using the screwdriver, rotate the flywheel in a counterclockwise direction.

GFD138647

Courtesy of FORD MOTOR COMPANY

2.
- Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Lubricate the camshaft journals and camshaft bearing caps and install.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- NOTE: Make sure that the components are installed to the position noted before removal.

  NOTE: Make sure that new bolts are installed.

  Install all the bolts finger tight before final tightening.
- Tighten each bolt 2 turns at a time.
  Torque: 89 lb.in (10 Nm)

Fig 1: Camshaft Tightening Sequence (1 of 3)

GFD138649

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  Rotate the camshafts and measure the valve clearances. Use the General Equipment: Feeler Gauge
- 2.

  Note down each cylinder number and the valve clearances measured.
- 3.

  Compare the measured valve clearances with the specifications. Refer to: Specifications .

GFD138645

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Note the position of the components before removal.

Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and the camshafts.

Fig 2: Camshaft Tightening Sequence (2 of 3)

GFD138648

Courtesy of FORD MOTOR COMPANY

5.
- Remove the valve tappet and read the thickness from the underside.
- The number on the valve tappet indicates the thickness of the bottom of the tappet. However, the number only indicates the digits after the decimal point (example: 725 = 2.725).

6.
- Calculate the required thickness of the valve tappet with the following formula: X = S + M - V
- Required thickness of tappet = X
- Thickness of currently fitted tappet = S
- Measurement of existing valve clearance (actual value) = M
- Desired valve clearance = V

7.

Install the correct valve tappet.

8.

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The component must be installed within 5 minutes of applying the sealant.

Apply 3 mm (0.118 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown below.

Material: Motorcraft ® Gasket Maker / TA-16 (WSK-M2G348-A5)

GFD138650

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The component must be installed within 5 minutes of applying the sealant.

Apply 3 mm (0.118 in) beads of gasket maker to the exhaust rear camshaft bearing cap mating surface as shown below.

Material: Motorcraft ® Gasket Maker / TA-16 (WSK-M2G348-A5)

GFD138651

Courtesy of FORD MOTOR COMPANY

10.
- 1.

  Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 2.

  Lubricate the camshaft journals and camshaft bearing caps and install.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 3.

  NOTE: Make sure that the components are installed to the position noted before removal.

  NOTE: Make sure that new bolts are installed.

  Install all the bolts finger tight before final tightening.
- 4.

  Tighten each bolt 2 turns at a time.
  Torque: 89 lb.in (10 Nm)

Fig 3: Cmashaft Tightening Sequence (3 of 3)

GFD138649

Courtesy of FORD MOTOR COMPANY

11.

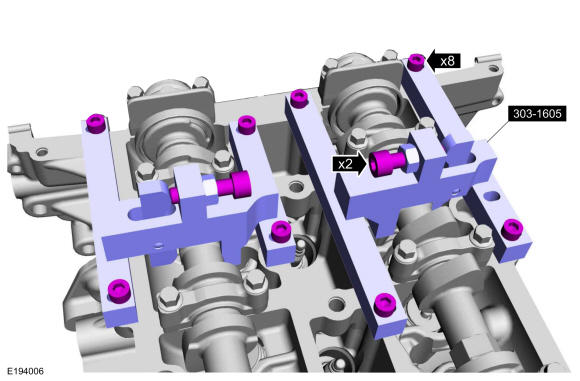

Install Special Service Tool: 303-1605 Alignment Tool, Camshaft.

GFD138664

Courtesy of FORD MOTOR COMPANY

12.

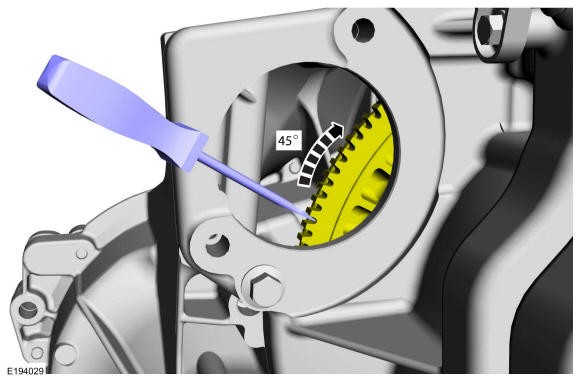

Using the screwdriver, rotate the flywheel in a clockwise direction.

GFD138666

Courtesy of FORD MOTOR COMPANY

13.

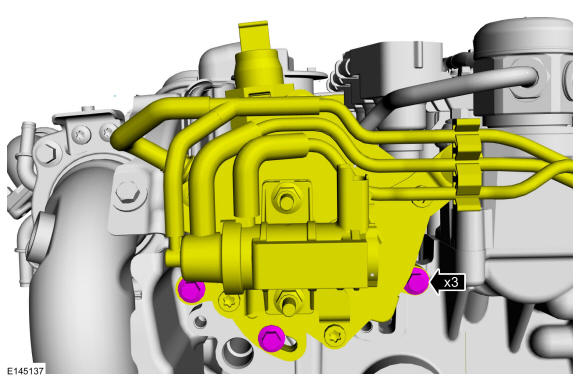

Position the vacuum pump assembly and install the bolts.
Torque: 89 lb.in (10 Nm)

GFD138663

Courtesy of FORD MOTOR COMPANY

14.

Install the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
