Disassembly And Assembly Of Subassemblies: Piston: Assembly
WARNING: This page is about a different variant/trim than selected.
- 3.
Lubricate with clean engine oil and install the piston pin.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 5.
Lubricate with clean engine oil and install the piston rings.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

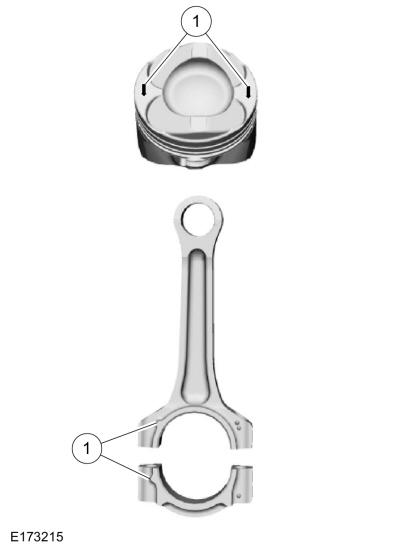

- 6.NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.NOTE: Arrows faces the front of the engine.
- 1.
Upper compression ring gap location.
- 2.
Upper oil control segment ring gap location.
- 3.
Expander ring gap location.
- 4.
Lower oil control segment ring gap location.
- 5.
Lower compression ring gap location.
- 1.
