Oil pan baffle/oil pan
WARNING: This page is about a different variant/trim than selected.

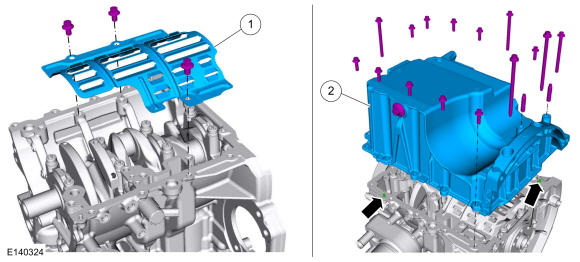

| Item | Description |
|---|---|
| 1 | Oil baffle plate |
| 2 | Oil sump |
The oil pan baffle is bolted to the cylinder block from underneath with three securing bolts.
The oil pan is made of an aluminum alloy. It is equipped with a solid rib and at the same time forms the lower transmission flange. This achieves a rigid engine/transmission combination.
There are two guide pins (arrows) on the sealing surface of the cylinder block for exact alignment of the oil pan.
The seal of the oil pan to the cylinder block is made using sealing compound.
For installation and removal of the oil pan or the oil pan baffle, the detailed instructions in the current service information literature must be followed.
