Oil Spray Nozzles
WARNING: This page is about a different variant/trim than selected.

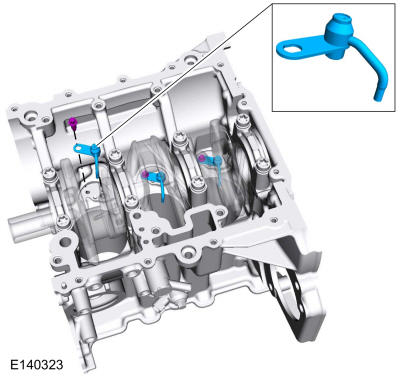

There are three oil spray nozzles for piston cooling, located at the bearing positions for the crankshaft in the cylinder block.
They are aligned so that engine oil is sprayed onto the underside of the piston.
The oil spray nozzles are equipped with a ball valve. The valve opens from an engine oil pressure of about 1.2 bar.
