Oil pump
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

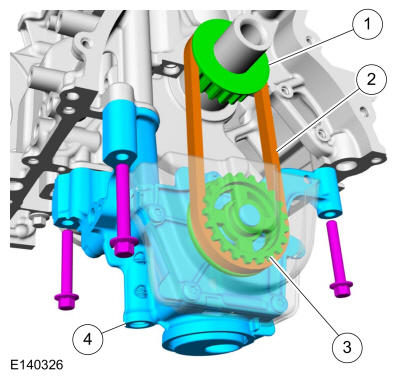

| Item |
Description |
| 1 |
Oil pump drive pulley |
| 2 |
Oil pump drive belt |
| 3 |
Oil pump gear |
| 4 |
Oil pump |
The oil pump is mounted on the cylinder block from below with three securing bolts.
