Cylinder head gasket
WARNING: This page is about a different variant/trim than selected.
NOTE:
When the cylinder head gasket is replaced, the new gasket must have the same identification marking as the gasket which was previously installed. In addition, the instructions in the procedure must be followed for installation.

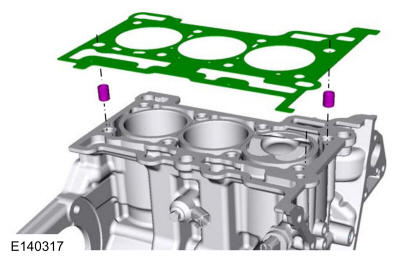

A multi-layer steel laminate cylinder head gasket is used.
Two guide sleeves are pressed into the cylinder block to locate the cylinder head and its gasket.
